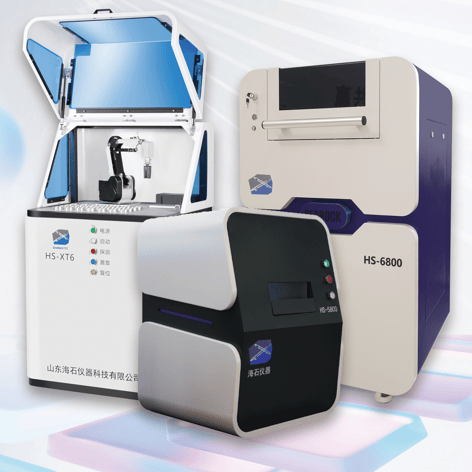

XRF Spectrometer HS-5800

HS-5800Technical Parameters

Element Range

11#（Na）-92#(u)

Optical System

1. The unique top-irradiation optical path structure, the patented automatic sample lifting and measurement platform and the self-rotating system make it possible to measure powder samples without contaminating the detector, and it is convenient to maintain and has good reproducibility.

2. The compact coupled optical path I is the first of its kind in China. The new compact coupled optical path adopted by the high-sensitivity technology makes the 5800 series have excellent precision. The advanced design ensures that the fluctuation range of the analysis results is very narrow, thereby reducing light consumption and increasing light yield. The distance between the X-ray tube and the sample, and between the sample and the detector in the 5800 series is significantly shorter than that of previous instruments, so the 5800 series has less light loss and better performance.

Detector

Detector: Electrically cooled FAST-SDD semiconductor detector

Instrument resolution: 100 eV

Cooling method: Peltier cooling technology

Processor: Original 10K multi-channel analyzer acquisition system

Content Range

1PPM-99.99%（The content of different elements varies.）

Measuring Time

30-200 second

Digital multichannel Analyzer

2048 channels

Primary Filter

6-10-position automatic filter; multiple composite materials for different material detection, suitable for wide range of element analysis

X-ray tube

Rh anode target；

Maximum power:50W；Maximum pressure 50KV；Pipe flow：5µA-1000µA

Measurement type

Vacuum mode：Reduce operating costs and enhance the performance of light element analysis.

Air mode

Sample Type

powder,solid,tablets,melt film,liquid

Sample control

Spinning the sample can eliminate the inhomogeneity of the sample.

Software algorithm

Non-standard sample analysis method (optional) can analyze the content of elements without standard substances. Standard curve method, theoretical coefficient method, basic parameter method, etc.

Circuit Control System

The original imported programmable controller has a lower failure rate than integrated circuit boards, with high reliability and strong anti-interference ability. It can be customized and programmed according to the actual needs of customers.

Power Supply

220V    50Hz

Work Environment

Temprature range：5—30℃     Humidity≤80%

Dimensions

Length*Width*Height  550*590*750

Weight   50kgs

Ø Typical resolution: 123ev

Ø Output count rate 3000KCPS

Ø Peak-to-back ratio ≥25000:1, and peak-to-tail ratio > 1800.

Ø Features of the window: The ultra-thin window with 1μm carbon window increases the signal acquisition intensity of light elements.

Ø Processor: Original imported multi-channel data acquisition system

Ø High voltage: 0-50Kv continuously adjustable

Ø Current: 0-4000uA continuously adjustable

Ø Power: 50W

Ø Stability: 0.2% after 8 hours

Ø Input voltage: 24VDC

Ø Input current: 4A

Ø Output voltage: 50Kv, 0-4MA

Ø Maximum power: 50W

Ø Stability: 8 hours 0.05%

Ø 16 bit analog-to-digital converter

Ø 24-inch display

Ø Brand computer

Ø 512G solid-state drive

Ø Multifunctional standard keyboard

Ø Laser printer

Ø Length * width * height:550mm*590mm*750mm

Ø Weight: approximately 50kg(main unit)

Ø 220V±10% 50Hz

Ø Temperature range: 5-30 ℃.

Ø Relative humidity ≤ 80%
