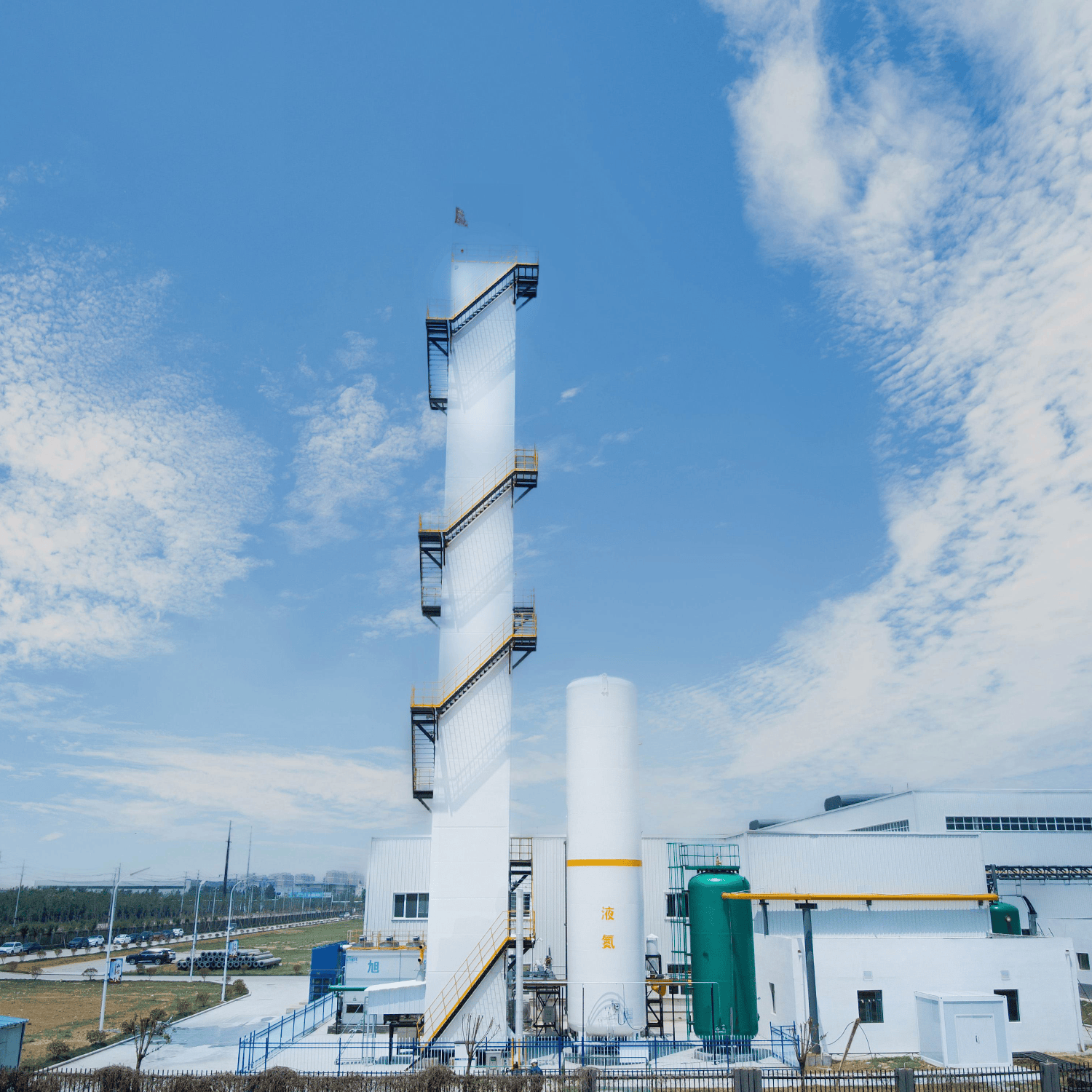

Cryogenic Nitrogen Gas Plant – Brief Overview
A cryogenic nitrogen gas plant is an industrial air separation facility that produces high‑purity gaseous nitrogen by distilling atmospheric air at extremely low temperatures-. Since nitrogen makes up about 78 % of air, the plant separates it from oxygen, argon, and other trace gases through a process based on the Hampson‑Linde cycle.
Main Process Steps
-
Air compression & pre‑treatment – Ambient air is compressed and then passed through a purification system to remove water vapour, carbon dioxide, and hydrocarbons. This step is critical to prevent freezing and fouling in the cold section.
-
Cooling & liquefaction – The purified air is cooled in a main heat exchanger to cryogenic temperatures (around –173 °C) and partially liquefied. Refrigeration is typically provided by an expansion turbine or, in some designs, by a small amount of liquid nitrogen.
-
Distillation – The cold, partially liquefied air enters a distillation column, where the components are separated based on their different boiling points. Nitrogen, having the lowest boiling point, rises to the top of the column as a gas, while an oxygen‑enriched liquid collects at the bottom.
-
Product delivery – The high‑purity nitrogen gas is then sent to downstream applications; it may be compressed to meet specific pressure requirements. The plant can also produce liquid nitrogen simultaneously if equipped with a liquefaction section.
Key Equipment
-

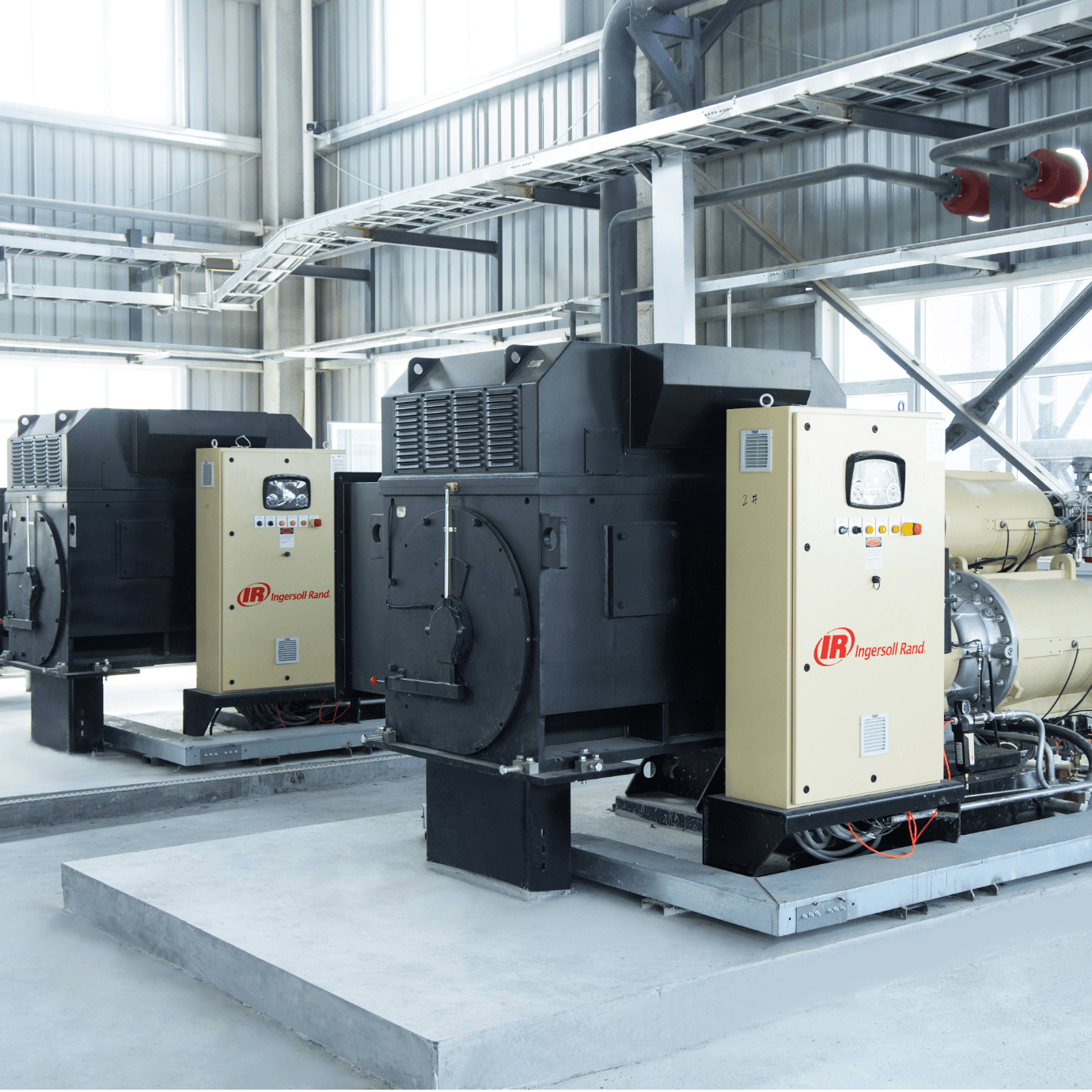

Air compressor
-

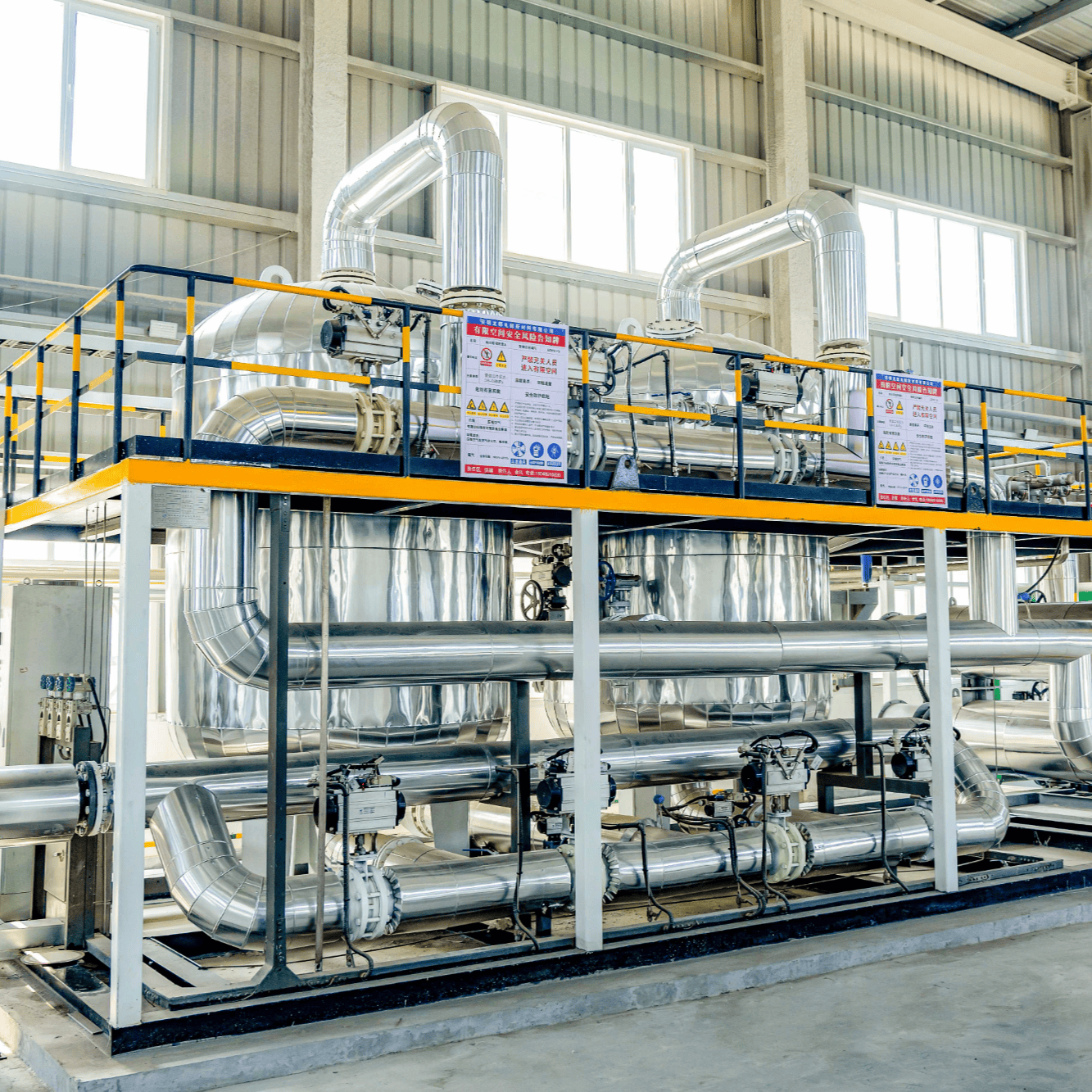

Pre‑treatment system (molecular sieves, filters)
-
Main heat exchanger (typically brazed aluminium)
-
Distillation column (vacuum‑insulated)
-
Expansion turbine (for refrigeration)
-
Liquid nitrogen storage tank (optional backup)
-
Product compressor (for high‑pressure delivery)
Purity & Capacity
Cryogenic plants typically achieve nitrogen purities of 99.999 % or higher, with oxygen impurity levels as low as 5 ppm. They are designed for large‑scale production, with gaseous nitrogen outputs ranging from less than 100 Nm³/hr up to over 11,000 Nm³/hr.
Applications
The inert nature of nitrogen makes it valuable across virtually every industry. Common applications include:
-
Chemical & petrochemical – blanketing, purging, reactor sparging, and ammonia/fertiliser production-
-
Electronics & semiconductors – ultra‑high‑purity nitrogen for manufacturing processes
-
Metals & glass – inerting during heat treatment, float glass production
-
Oil & gas – enhanced oil recovery and pipeline purging-
-
Food & beverage – packaging and preservation
-
Pharmaceuticals – inert atmosphere for sensitive processes
Advantages

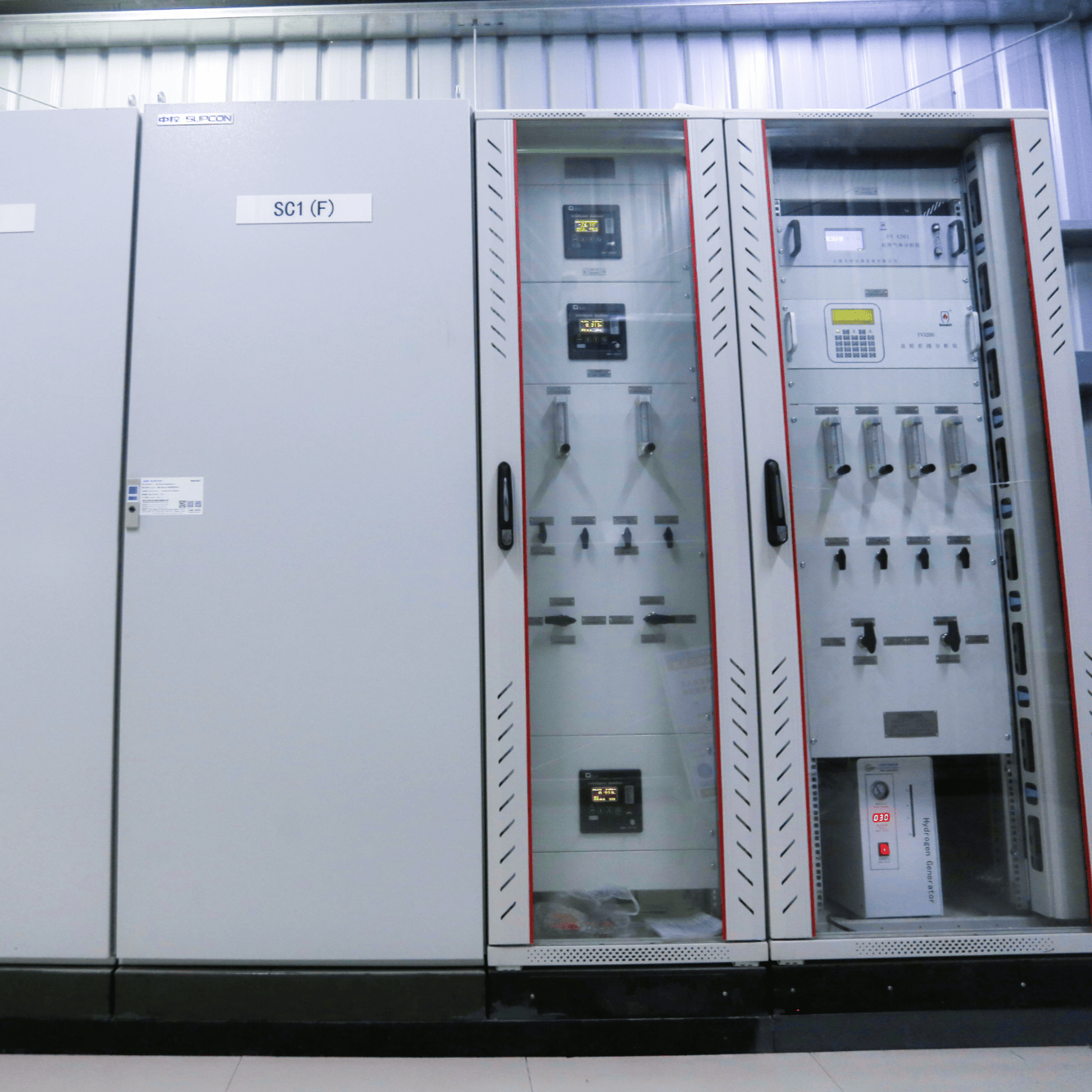

Cryogenic nitrogen plants provide a reliable, on‑site supply of ultra‑high‑purity nitrogen, eliminating dependence on delivered gas. They feature fully automated controls for unattended operation, compact modular designs, and the flexibility to produce both gaseous and liquid nitrogen. For large‑scale, continuous operations, cryogenic technology is the most economical choice-.
In summary, a cryogenic nitrogen gas plant is the standard solution for high‑volume, high‑purity gaseous nitrogen production through low‑temperature air distillation.
