Cryogenic Liquid Oxygen Plant – Brief Overview
A cryogenic liquid oxygen plant is an industrial air separation facility that produces high‑purity liquid oxygen (LOX) by fractionally distilling atmospheric air at very low temperatures. It operates on the Linde‑Hampton cycle, exploiting the different boiling points of oxygen (–183 °C) and nitrogen (–196 °C) to separate them.
Main Process Steps
-
Air compression & pre‑treatment – Ambient air is compressed and then passed through molecular sieve adsorbers to remove moisture, carbon dioxide, and trace hydrocarbons. This prevents freezing and ensures safety in the cold section.
-
Cooling & liquefaction – The purified air is cooled in a main heat exchanger to cryogenic temperatures (around –173 °C), partially liquefying it.
-
Distillation – The liquid air enters a double‑column distillation system (high‑pressure and low‑pressure columns). Through repeated vaporization and condensation, oxygen (heavier) collects at the bottom of the low‑pressure column with a purity typically above 99.5 %, while nitrogen rises to the top.
-
Storage – The resulting liquid oxygen is transferred to insulated cryogenic storage tanks for distribution.
Key Equipment
-

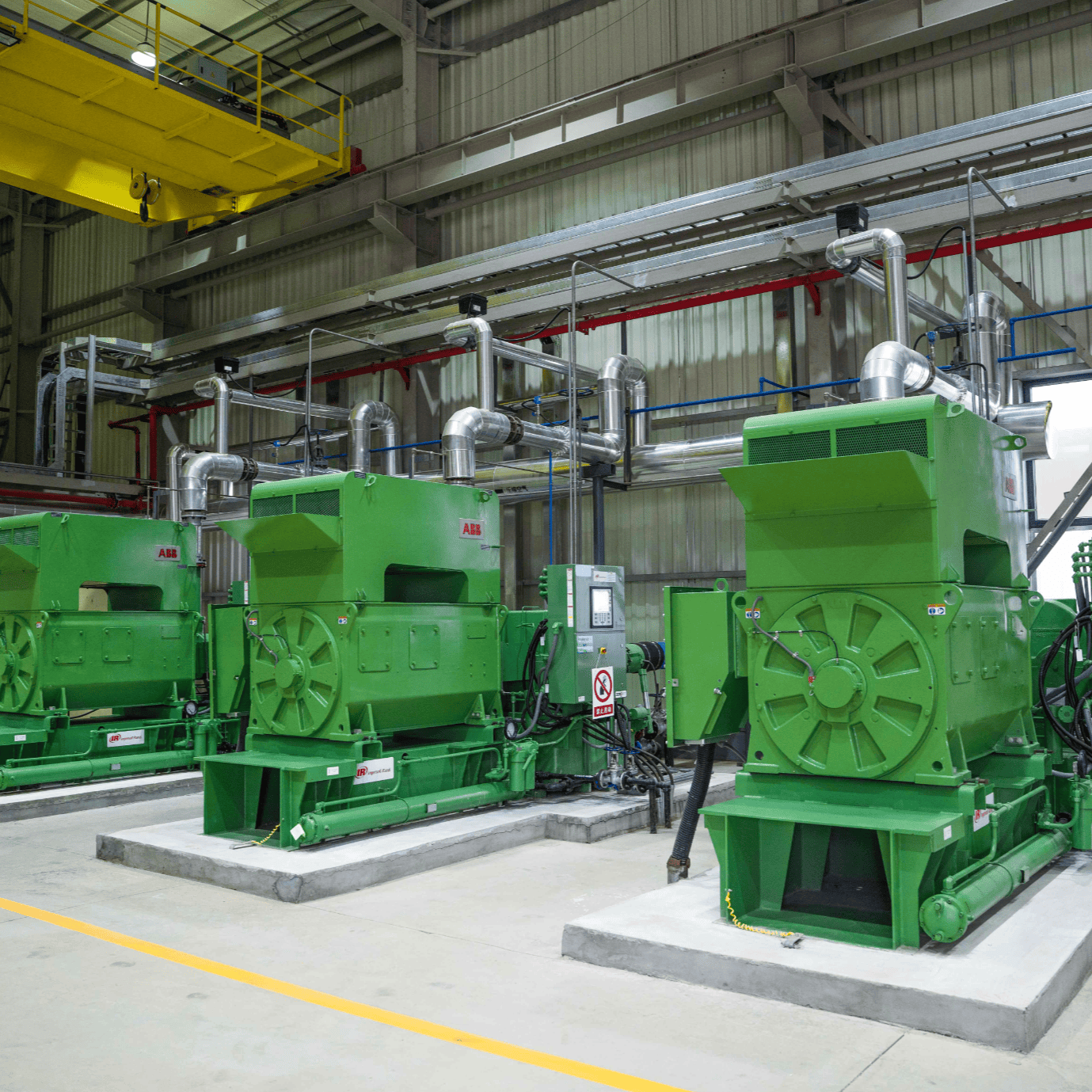

Air compressor
-

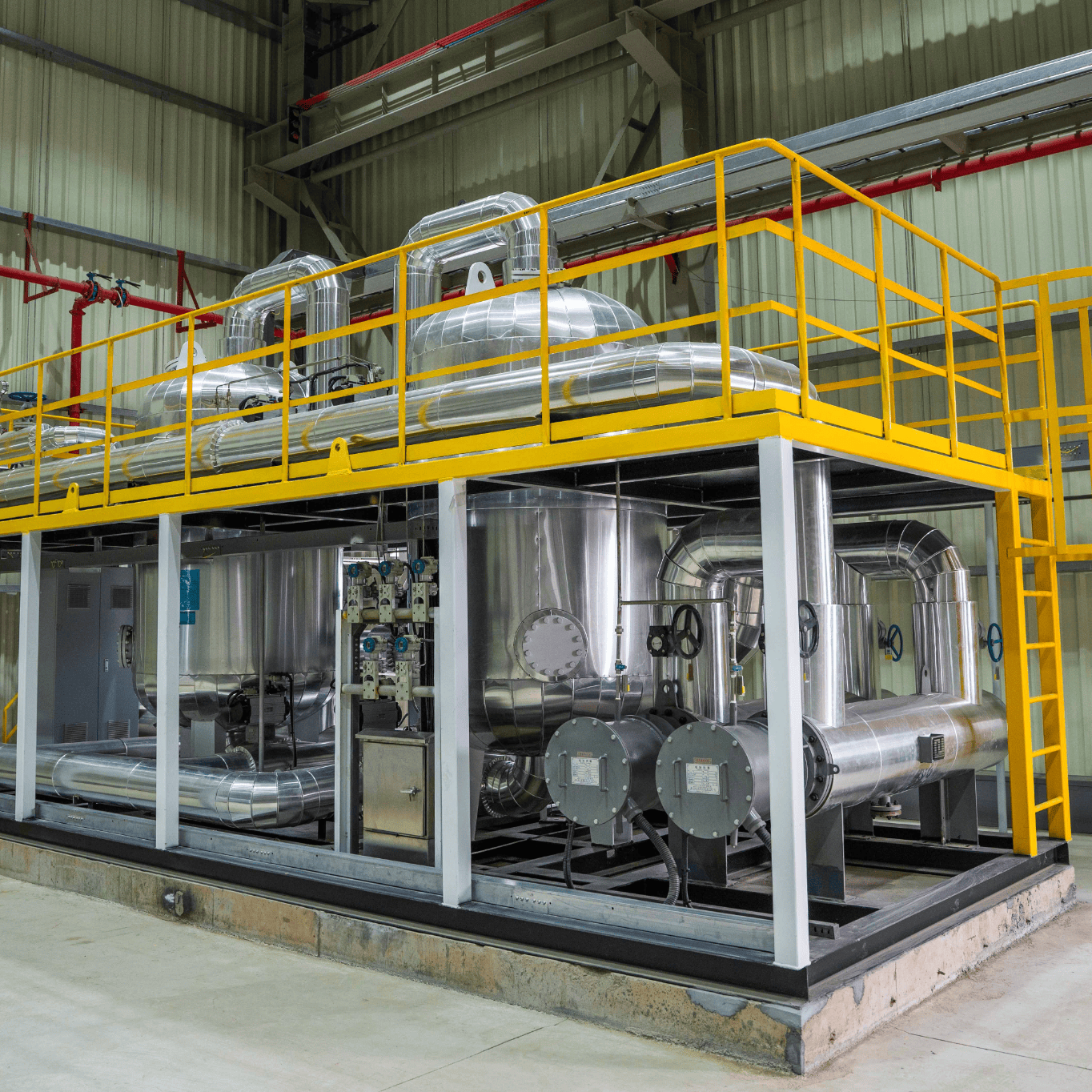

Purification (adsorption) system
-

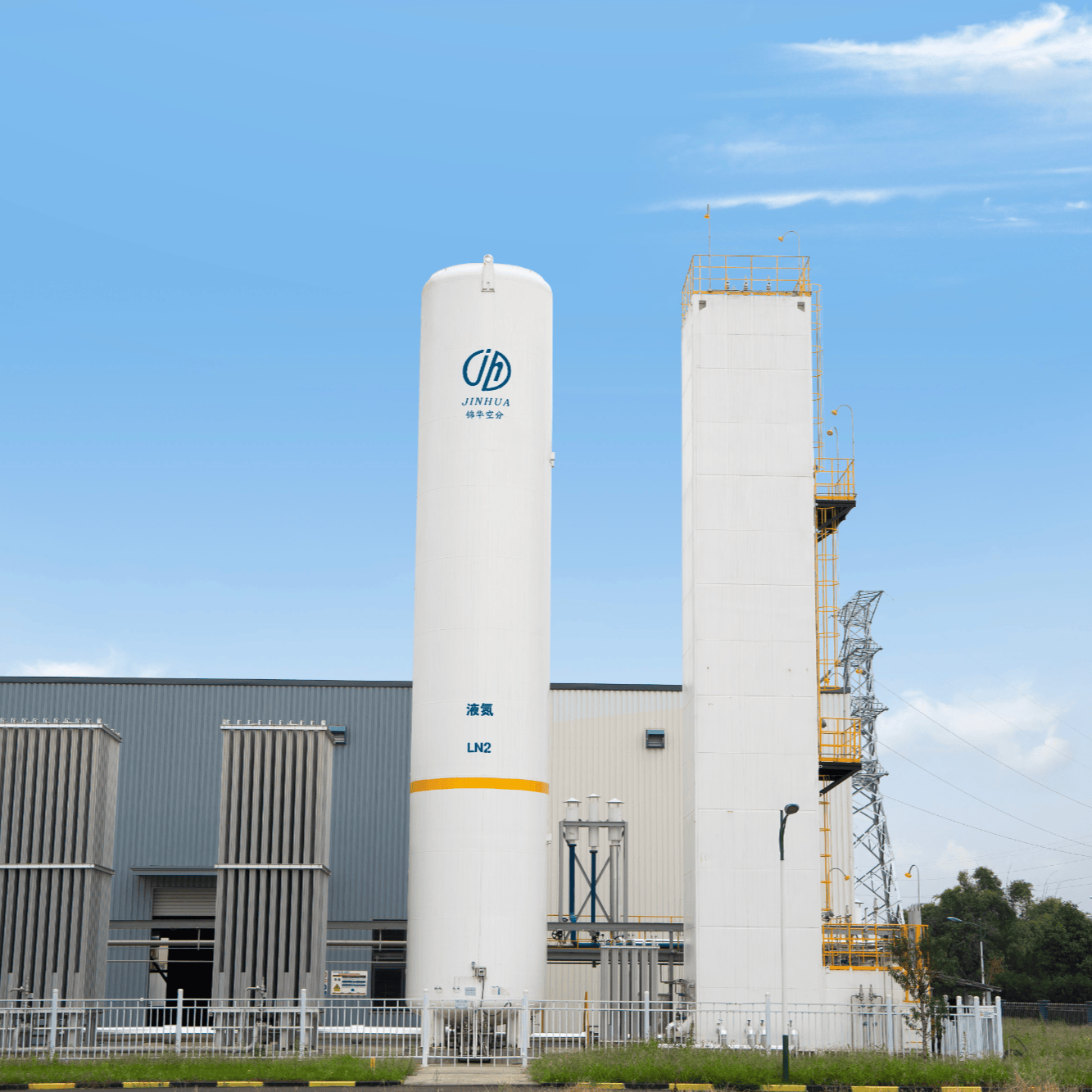

Cold box (containing heat exchangers, distillation columns, and reboiler/condenser)
-
Liquid oxygen pump and storage tank
Applications
Liquid oxygen from these plants is widely used in:
-
Steelmaking (blast furnace enrichment)
-
Chemical synthesis (oxidation processes)
-
Medical oxygen supply (in gaseous or liquid form)
-
Aerospace (rocket propellant)
-
Wastewater treatment and environmental remediation
Advantages
The plant delivers a continuous, large‑scale supply of high‑purity oxygen with optional co‑production of liquid nitrogen and argon, making it an efficient and versatile solution for heavy industry and healthcare.
In summary, a cryogenic liquid oxygen plant is the standard, reliable route for producing high‑quality liquid oxygen through low‑temperature air distillation.
