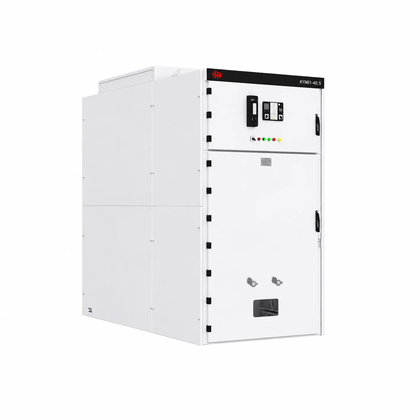

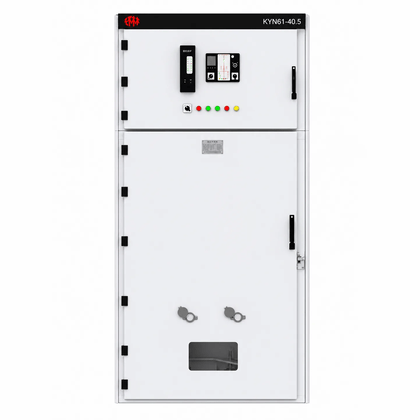

KYN61-40.5 Metal-Clad Withdrawable Switchgear (40.5 kV)

EXW
$13,000.00-17,800.00 /Set
Jiangxi Harrl Group Co., Ltd.
China
No. 388 Quanshun Road, Xiaolan Economic and Technological Development Zone, Nanchang County, Nanchang City, Jiangxi Province
18379983771
+86 13060075509
Online Contact
Favorite
Product Introduction

Air-insulated, metal-clad withdrawable switchgear for indoor 40.5 kV, three-phase 50 Hz single-busbar systems — the highest MV level in HARRL's switchgear range. Applied in 35 kV-class substations, power plants, mining and heavy-industry feeds. The handcart uses a screw-nut propelling mechanism allowing all operations with the door closed, and accepts composite-insulated or ZN85-40.5 vacuum circuit breakers.

Technical Parameters

Key Specifications

Standards IEC 62271-200 / -100 (ref. GB 3906-2006, DL/T 404)
Insulation Voltage 40.5 kV
Rated Frequency 50 Hz
Busbar Rated Currentup to 4000 A
Branch Busbar Rated Currentup to 4000 A
