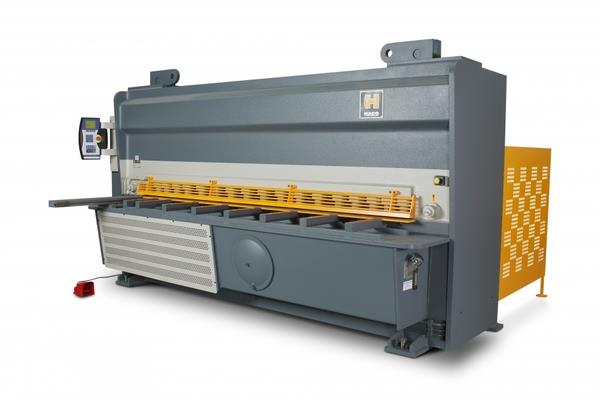

HSLX series shears

The hydraulic cylinders on the HSLX shears are positioned directly above the ram and push the ram in a downwards direction. Guillotine shears have several advantages above swingbeam type shears. They are made to cut sever......The hydraulic cylinders on the HSLX shears are positioned directly above the ram and push the ram in a downwards direction. Guillotine shears have several advantages above swingbeam type shears. They are made to cut several material types and thicknesses and have no twist in the frame like swingbeam types. On the HSLX models, the beam rake angle and the blade gap setting are controlled by the new SC90 operator control. We adjust the rake angle on the HSLX guillotines by pumping more oil into, or releasing oil out of the right cylinder. To set the blade gap, we have 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings.
