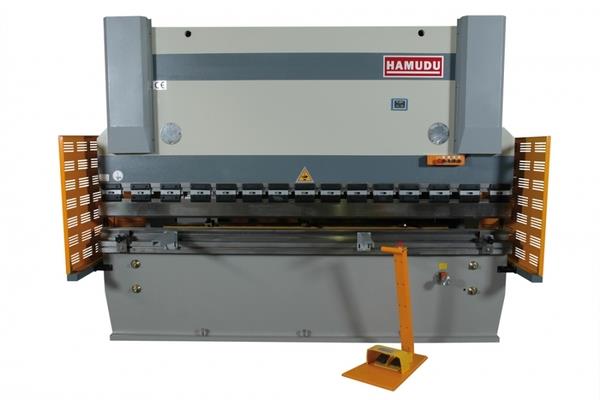

conventional PPME press brake

The PPME press brake line is our economic hydraulic conventional line, ranging from 100T to 200T with bending lengths of 3200mm up to 4000mm. These machines have a mechanical depth-stop integrated in both hydraulic cylind......The PPME press brake line is our economic hydraulic conventional line, ranging from 100T to 200T with bending lengths of 3200mm up to 4000mm. These machines have a mechanical depth-stop integrated in both hydraulic cylinders. Ram parallelism is guaranteed by a solid torsion bar which connects both sides of the ram. Both mechanical depth stops are integrated inside the hydraulic cylinders. This keeps the depth stops dust free and well lubricated by the hydraulic oil. We guarantee a 0.01mm bending accuracy with this system, perfectly suited for air bending. The stroke length and speed change point can be set very easy with an adjustable cam system on the side of the ram.
