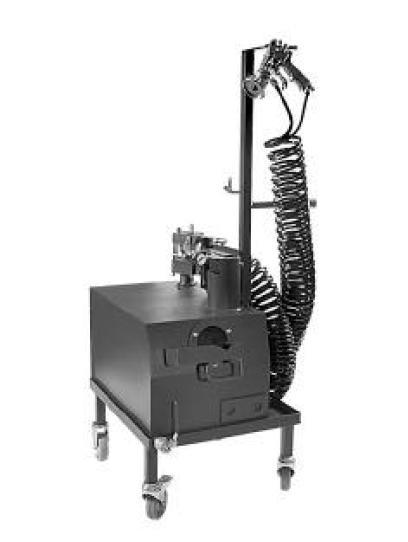

Machines UNICLEAN TC 1036 S

Technical data: Max. mains air pressure: 18 bar Min. mains air pressure: 6 bar Max. working air pressure: 8 bar Min. working air pressure: 2,5 bar Average air requirement: approx. 250 l/min Pressure ratio: 4 : 1 Max. work......Technical data: Max. mains air pressure: 18 bar Min. mains air pressure: 6 bar Max. working air pressure: 8 bar Min. working air pressure: 2,5 bar Average air requirement: approx. 250 l/min Pressure ratio: 4 : 1 Max. working pressure (to the pistol): 32 bar Air-feed amount (at 6 bar air pressure): approx. 6 l/min Allowed tank filling volume: max. 30 l Dimensions: Width 380 mm Height 500 mm Depth 640 mm Weight (without contents): approx. 30 kg Hydraulic tubes, ready to be installed, and other tube installations should not be installed without being carefully cleaned. Blocked valves and other problems caused by dirt can now be avoided. UNICLEAN permits practical cleaning direct at the place of assembly. Special advantages: - easy handling - efficient for tubes from 6-42 mm OD - two-stage turbo-nozzle - effective sealing of the tank with a special air filter - almost leak-free application - easy to maintain Performance: The cleaning medium is sprayed by a pneumatically operated high-pressure pump via a two-stage spray pistol with turbo-effect. A special nozzle at the tube end avoids the loss of cleaning medium. The other tube end is plugged into ribbed seal of the return cock on the tank. A special air filter in the tank provides an air outlet. The outflow of cleaning medium is avoided to a large extent. The cleaning medium is filtered in a coarse and fine filter process before being reused. For re-drying of tubes, the pistol can be used with the function ‘compressed air only’. With equivalent medium even the preservation of tubes or other problem parts is possible. For easy cleaning of the tank, the tank lid is removable. An outlet valve with hose connector is provided on the tank.
