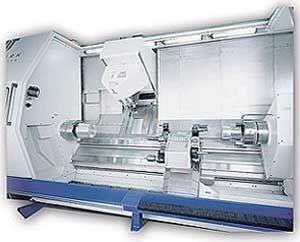

twin-spindle milling lathe

m60-g technical data centre distance 2000/3000 mm swing over top slide 670 mm swing over bottom slide 480 mm standard chuck 500/400 mm max. power main spindle at 100% duty cycle 40/60 kw max. power counter spindle at 100%......m60-g technical data centre distance 2000/3000 mm swing over top slide 670 mm swing over bottom slide 480 mm standard chuck 500/400 mm max. power main spindle at 100% duty cycle 40/60 kw max. power counter spindle at 100% duty cycle 40 kw max. torque main spindle at 100% duty cycle 1830/2748 nm max. torque counter spindle at 100% duty cycle 1830 nm max. speed main spindle 3300/2600 min-1 max. speed counter spindle 3300 min-1 max. power milling spindle at 100% duty cycle 17/25 kw torque max. milling spindle at 100% duty cycle 210/300 nm max. speed milling spindle 4000 min-1 max. pressure of coolant through spindle 80 bar swivelling range b-axis -110/+90 degree travel y-axis 300 (-125/+175) mm travel x-axis 700 mm steady rest clamping max. 160 mm tool magazine 40/80/120 number control: siemens sinumerik 840 d type
