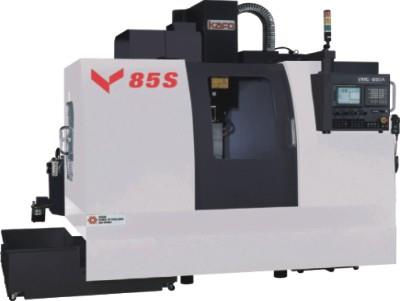

Vertical Machining Center VMC-850A

Product No.:VMC-850A Product Name:Vertical Machining Center Product Introdction: 1.Here are two choices for ATC module:standard 16-tools carousal type, or optional side-mounted 24-tools cam type. 2.Spindle thermal expansi......Product No.:VMC-850A Product Name:Vertical Machining Center Product Introdction: 1.Here are two choices for ATC module:standard 16-tools carousal type, or optional side-mounted 24-tools cam type. 2.Spindle thermal expansion is in the same direction with Y-axis thermal expansion, so they will be compensated automatically. 3.The electric cabinet is fully isolated for cleanness, Heat dissipation is achieved by a high performance heat exchanger. Another cooling system is provided for the heat-dissipating devices. 4.The feed is driven by the oversized ball screw with preloaded double nuts and pretentioning on the tail end, ensuring minimum heat strain and higher accuracy in the feed. 5.A super precision ball screw is positioned in the exact center of the guideway, assuring accurate positioning everywhere. 6.The X and Y and Z axes are covered by heavy duty steel telescopic covers. 7.The spindle is directly couplecd to the motor, so there is no power loss due to driving mechanism, and the noise is minimized. 8.The perfect combination of full enclosure and well-shaped base achieves leakage-free and easy chip removal. 9.The electric cabinet is fully isolated for cleanness. Heat dissipation is achieved by a high performance heat exchanger. Another cooling system is provided for the heat-dissipating devices. 10.Solidly Constructed Throughout The Column, Bed, Table, And Saddle The column, bed, table and saddle are box constructed from high quality cast iron and are stress relieved. The wide bed construction quarantees greater rigidity. The column is Y-shape box constructure, which is combined to the base through a large contacts surface. Its rigidity is incomparable.
