press brake

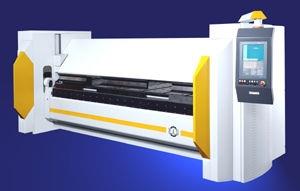

the turbobend plus metal folding system is available in working lengths of 3200 mm and 2540 mm with a capacity of up to 2 mm mild steel material thickness. an extremely clever tooling system offers box production capabili......the turbobend plus metal folding system is available in working lengths of 3200 mm and 2540 mm with a capacity of up to 2 mm mild steel material thickness. an extremely clever tooling system offers box production capabilities for up to 110 mm deep boxes. these tools come in two different shapes: the front-free tool for long return flanges and rear-free tools for narrow parts. in addition, the folding beam tools can be also segmented. with the revolutionary ras programming the operator can use his finger as a pencil. he simply paints a flange and sizes it to the right dimension and angle. he can see the shape of the finished part on the screen. the cadalyzer automatically creates the program using the part drawing. a bend sequence simulation shows if the part can be produced. the cadalyzer shows the program, the finished part and the actual bend sequence all at a time. for material thickness changes the folding beam automatically adjusts itself in less than 5 seconds. the cnc backgauge positions the part to any dimension within the standard backstop depth of 1550 mm. the backstop can be extended to 3050 mm for really large parts. the operator can also work from the rear. this allows him to handle even large and heavy parts just by himself.
