swaging machine

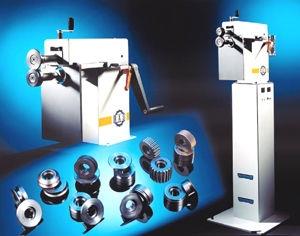

the swaging machines ras 11.15 and ras 11.35 come standard with 9 sets of wheels and a large and divided stop plate. the drive can be manual (ras 11.15) or with a variable speed motor (ras 11.35). the maximum material thi......the swaging machines ras 11.15 and ras 11.35 come standard with 9 sets of wheels and a large and divided stop plate. the drive can be manual (ras 11.15) or with a variable speed motor (ras 11.35). the maximum material thickness is 1.25 mm and the working depth is 200 mm. there is a wide range of businesses, that use swaging machines. these swaging machines cover a wide range of applications in the roofing and insulating industry, in chimney and kitchen equipment and also in the automotive industry. the maximum speed of the motor machine is 20 m/min. the variable speed can be regulated with the foot pedal. for power supply a standard 230v,one phase outlet is enough. the motorized machine comes on a stand which can be fixed to the ground within no time. standard wheel boxes can be hung into the machine stand slots. an optional round stop can be used to produce flanges within a hole of a flat metal piece. this simplifies the connection between a flat part and a tube significantly. the result is a clean joint produced in a fraction of time.
