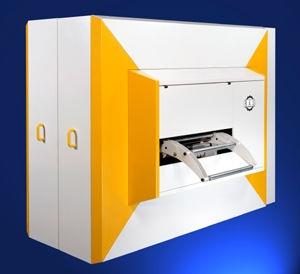

punching center

the speedpunch punching center from coil closes the gap between hard tools and punching/nibbling machines. it offers blinding speed combined with maximum flexibility. the speedpunch comes with punching cassettes that can ......the speedpunch punching center from coil closes the gap between hard tools and punching/nibbling machines. it offers blinding speed combined with maximum flexibility. the speedpunch comes with punching cassettes that can be loaded with thick turret tools in sizes a thru d. a total of 27 tools can be loaded in the cassette at a time. the coil material can be up to 500 mm wide and the line is able to process coil material from 0.5 mm up to 2 mm thickness. in addition to the 1200 strokes per minute for nibbling there are three other factors for high-speed production. first, all axes are driven with two times the earths gravitational acceleration. second, the punching cylinder with 150 kn punching force can reach each tool within milliseconds. all tools are in a ready position at all times. tool change time therefore is nearly zero. third, the material moves in one direction only. the tools and also the punching cylinder move to the programmed punching position in a fraction of a second and fires the punching stroke. in the perfect interaction of highest accelerations, fastest tool change and optimal material handling the speedpunch offers an amazing amount of features and benefits to the end user.
