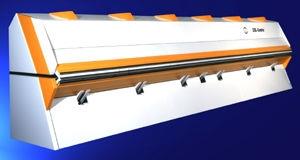

long bending machine

the xxl-center-center is the worlds first folding center for long parts. it automates the entire folding sequence for parts up to 4240 mm, 6400 mm or 8480 mm long and 1.5 mm thick. the machine automatically inserts, squa......the xxl-center-center is the worlds first folding center for long parts. it automates the entire folding sequence for parts up to 4240 mm, 6400 mm or 8480 mm long and 1.5 mm thick. the machine automatically inserts, squares, positions to the bend line, and bends the flanges up or down. no more rotation. no more complicated handling. enjoy the automatic production of precision parts, which will be produced in record time! in addition, the ras xxl-center folds pre-coated sheets without scratching the material surface. after the machine has loaded and automatically squared the blank, the feeding grippers take it over, hold and position the part for each bend. the upper beam clamps the material. the two folding beams bend the part up or down. the free space created by this functionality provides part design capabilities never before seen on a metal folder. the operator simply enters the angle and flange dimension for each bend in the graphical programming software. the cnc simulates the program sequence and allows a visual feasibility study.
