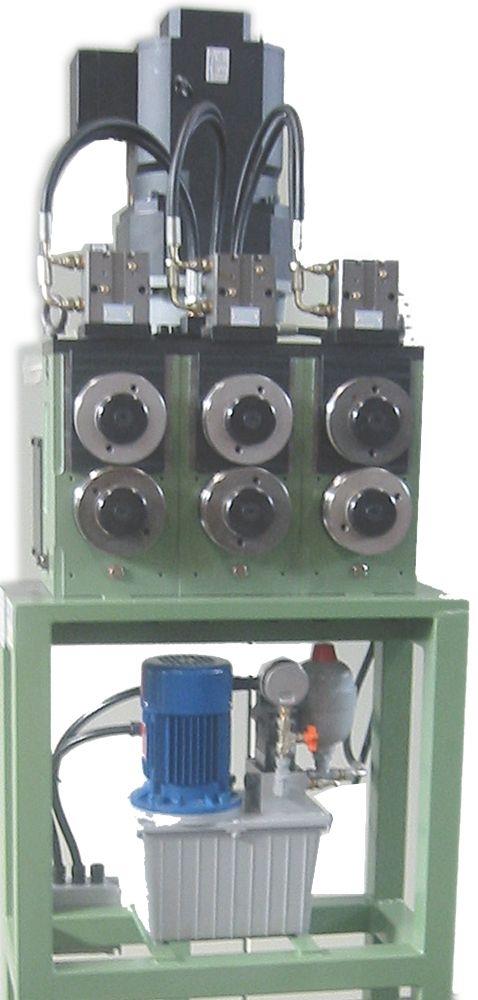

roller feeder

servo-roll feeder srf-100 strip thickness until 4 mm. the feed rollers are 100 mm hardened 62 hrc and ground with a 0.50 micron surface finish. the lower roll is directly driven by gear box. the upper roll is connected by......servo-roll feeder srf-100 strip thickness until 4 mm. the feed rollers are 100 mm hardened 62 hrc and ground with a 0.50 micron surface finish. the lower roll is directly driven by gear box. the upper roll is connected by 4 gears. speed reducer with low gap (3 degree), ratio 1:7 for 125 m/min. or 1/10 for 90 m/min. pressure to the upper roller by two pneumatic cylinder 100 with indipendent pressure release. you can open the upper roll at every stroke at 150 spm with angle 50 the material is positioned in the feeder by 4 guides, these can be used to auto center the strip together with the ability to adjust the material off center if required. feed roller with 3 lower roll and 1 upper roll. support square with 150 mm of adjustment by manual hydraulik crick. brushless servomotor 8-12-15 nm. digital servo driver with integrated positioning system. operator panel with the possibility to program 99 programs of 5 different steps repeat nr. times. programmable feed length from 1 mm to 999,99 mm. feed accuracy 0.04 mm. pendant control for manual commands. // options: pilot release with servomotor up to 300 pulse. measure wheel with encoder 5000 impulses. synchro with the press by absolute encoder mounted on the press main shaft. programmable exit for drive the electrovalve 24vdc for a die selector. little straightener with 5 free rolls 50 mm. zig zag execution for cut the disc on different lines. where to buy this product contact the manufacturer
