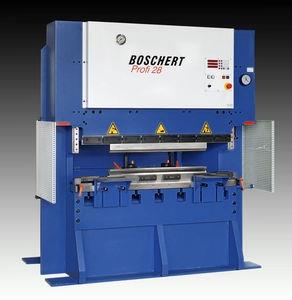

press brake

technical data - profi 28tonnage 560 kn bending length 2200 weight 4000kg width 2400 mm depth 1200 mm height from floor 2020 mm width betw. columns 2100 mm throat 200 mm width of worktable 2 x 270 mm operating height 850 ......technical data - profi 28tonnage 560 kn bending length 2200 weight 4000kg width 2400 mm depth 1200 mm height from floor 2020 mm width betw. columns 2100 mm throat 200 mm width of worktable 2 x 270 mm operating height 850 mm max. open height 325 mm y-travel 200 mm max. stop range in x 500 mm normal speed 8-10 mm/s return speed 30 mm/s repeatability +/- 0,02 connected load 12 kva control labod
