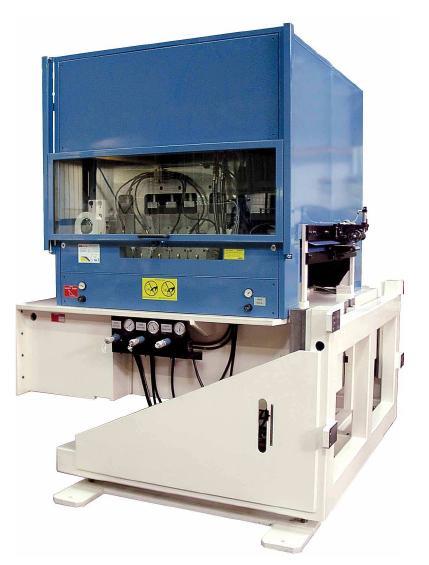

1691 - MICROPRO Straightener/Feeder

- 7 x 100 mm dia straightening rolls - Individual penetration adjustment of the 3 upper straightening rolls with reading on a dial - 1 pair of 100 mm dia inlet feeding rolls + 1 pair of outlet ones - POR: upper inlet and ......- 7 x 100 mm dia straightening rolls - Individual penetration adjustment of the 3 upper straightening rolls with reading on a dial - 1 pair of 100 mm dia inlet feeding rolls + 1 pair of outlet ones - POR: upper inlet and outlet roll lifting through pneumatic cylinders + sheet release for piloting through pneumatic opening of the feeding rolls and setting of motor torque to 0 - All straightening rolls are case-hardened (60 Rck) and ground - RCS: the feeding rolls are sandblasted and hard chrome plated (70 Rck) - CTG: rolls supported by rollers from width G - Lower straightening and feeding rolls motorised through a cylindrical gear pair - Motorisation through brushless motor and reduction gear free from play - GRS: inlet strip guide made up of 2 vertical rollers, symmetrically adjustable, and 2 sheet holding rolls - Outlet basket made up of 5 horizontal sheet holding rolls - Base made of rolled, welded steel - CRM/T: extra pitch measurement through sensor directly placed on the sheet and supervision of the slipping value between strip and rolls
