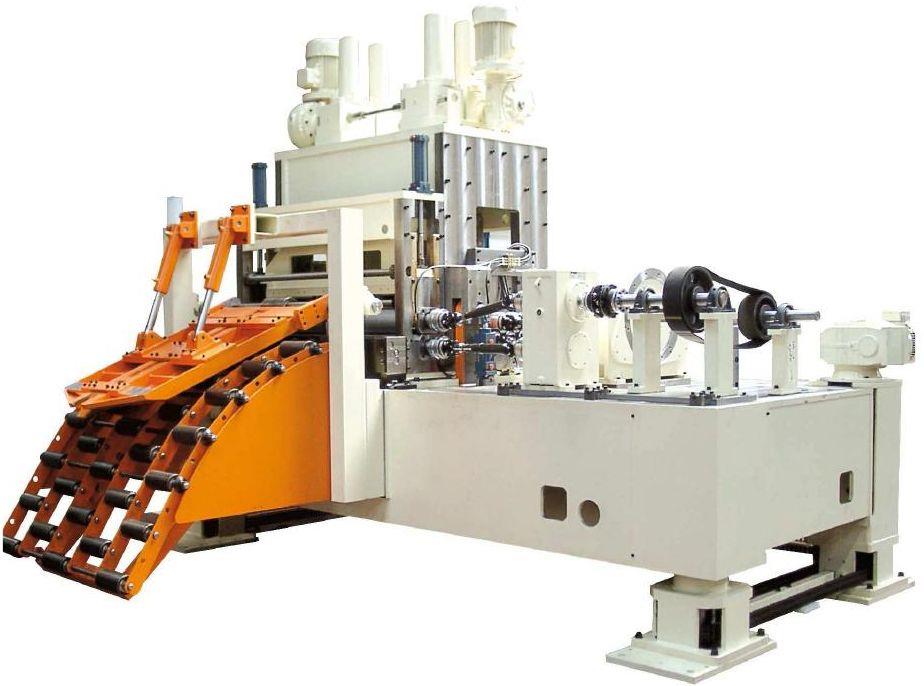

1689/7 - MICROPRO Straightener/Feeder

- 7 x 100 mm dia straightening rolls - The 3 upper straightening rolls are mounted on a cradle, whose depth and tilt are adjustable through 2 independent gear motors digital display of the cradle position - 1 pair of 140......- 7 x 100 mm dia straightening rolls - The 3 upper straightening rolls are mounted on a cradle, whose depth and tilt are adjustable through 2 independent gear motors digital display of the cradle position - 1 pair of 140 mm dia feeding rolls - Hydraulic POR: hydraulic release of the feeding rolls + sheet release for piloting through hydraulic opening of the feeding rolls and setting of motor torque to 0 - All straightening rolls are case-hardened (60 Rck) and ground - RCS: the feeding rolls are sandblasted and hard chrome plated (70 Rck) - All rolls are supported by hardened rollers to avoid deflection and get better straightening quality - All rolls are cardan-driven from a multiple outlet reduction gear - Motorisation through brushless motor and reduction gear free from play - GRS: inlet strip guide made up of 2 x 80 mm dia hardened vertical rollers, symmetrically adjustable, with width display - GCM: centralized lubrication unit with manual pump - Inlet horizontal rolls for easy strip introduction - Outlet basket made up of horizontal sheet holding rolls - Welded base - CRM/T: extra pitch measurement through sensor directly placed on the sheet and supervision of the slipping value between strip and rolls
