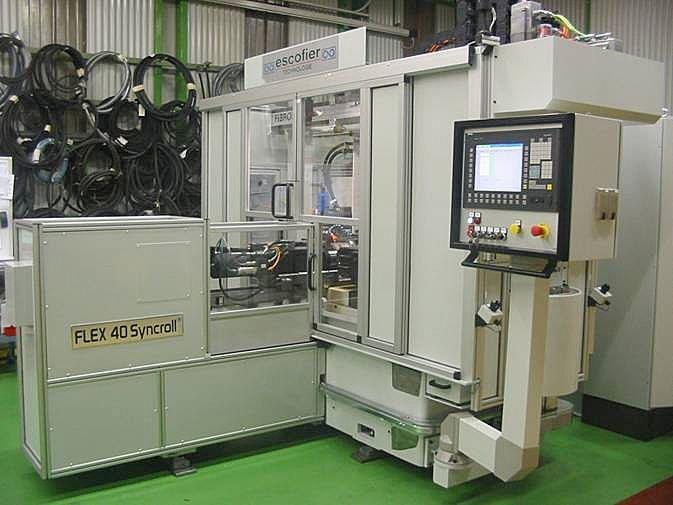

spline cold forming machine

spline cold rolling machine: cold forming of equally spaced teeth on either cylindrical or slightly tapered workpieces : involute straight or helical splines, serrations and knurling. principals: - fixed distance between ......spline cold rolling machine: cold forming of equally spaced teeth on either cylindrical or slightly tapered workpieces : involute straight or helical splines, serrations and knurling. principals: - fixed distance between the forming tools centrelines during the working cycle. - circular tools with evolutive profile. - simultaneous forming of adjacent forms : threads, circular grooves, helical oil grooves. - forming of splines with snap ring groove. machine description: - quick and accurate roll matching, easy corrections at any time. - working distance between tools symmetrically, precisely, continuously adjustable with or without parallel correction. - display of matching and centre distance adjustment values. large cast base to eliminate vibration and deformation. - conform to ce regulations. - possible to recognise multi workpieces, versatility between manual and automatic modes. - production rate: up to 600 pieces/hour depending on automation. - optional hydraulic control assistance for tool change. - optional mechanisation of different adjustment commands. - two versions available, depending of form of workpieces, loading and utility modes.
