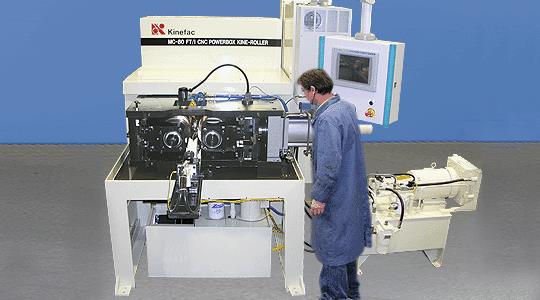

MC-80 FT/I CNC PowerBox Kine-Roller&#174 Cylindrical Die Rolling Machine

Specifications Maximum radial die load : 160,000 lbs Total torque at dies: 3150 ft lbs Standard spindle diameter: 3" Standard die gap : 6.25" Die diameter range : 6.5" to 10" Center to center distance range : 6.8" to 12.4......Specifications Maximum radial die load : 160,000 lbs Total torque at dies: 3150 ft lbs Standard spindle diameter: 3" Standard die gap : 6.25" Die diameter range : 6.5" to 10" Center to center distance range : 6.8" to 12.4" Skew range : ± 8° Standard die drive horsepower : 35 hp This PowerBox two cylindrical die rolling machine has a fixed horizontal rolling centerline. CNC die actuation and spindle drive with automatic match are available options. PowerBox machines are of a building block design therefore, spindle size, die drivehorse power, and speed and hydraulic die actuation can be adjusted for performance optimization for specific applications. Standard work support tooling, special application tooling, and Kine-Mat automated part handling are available where required.
