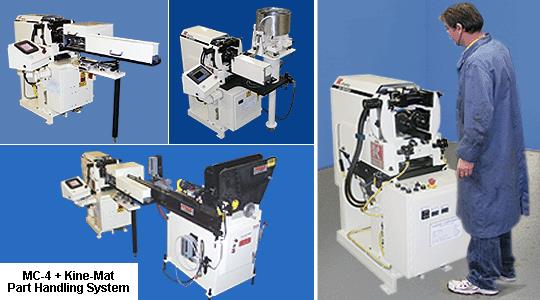

MC- 4 Kine-Roller&#174 Cylindrical Die Rolling Machine

Features Maximum radial die load : 14,000 lbs Total torque at dies: 88 ft lbs Standard spindle diameter: 1.50" Standard die gap : 2.6" Die diameter range : 3" to 4.4" Center to center distance range : 3" to 5" Skew range ......Features Maximum radial die load : 14,000 lbs Total torque at dies: 88 ft lbs Standard spindle diameter: 1.50" Standard die gap : 2.6" Die diameter range : 3" to 4.4" Center to center distance range : 3" to 5" Skew range : ± 10° Standard die drive horsepower : 3 hp The MC-4 Kine-Roller is a compact designed thread rolling machine used to produce micro threads, micro lead screws, precision small diameter knurls, and other rollable forms. This two die cylindrical thread rolling machine is typically used to produce forms on Aerospace Fasteners, Medical Device Components, Fasteners, Automotive Components, and other industries that requires a precision thread roller to meet their needs. The MC-4 Kine-Roller can be easily adapted with automatic loading to maximize production, or can easily be manually loaded for smaller production requirements. The MC-4 is capable of running either infeed or thrufeed modes to meet all your thread rolling needs.
