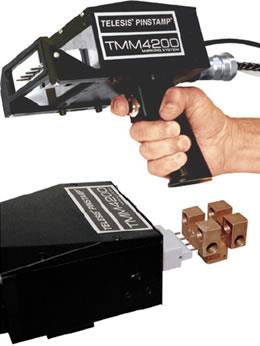

PINSTAMP Marking Systems TMM4200

The unique TMM4200 Multiple Pin Marking Head can be equipped with up to four marking pins for very high speed marking, yet weighs only 4.5 pounds (2.0kg). Its light weight, compact ergonomic design, plus optional pistol-g......The unique TMM4200 Multiple Pin Marking Head can be equipped with up to four marking pins for very high speed marking, yet weighs only 4.5 pounds (2.0kg). Its light weight, compact ergonomic design, plus optional pistol-grip handle make the TMM4200 the ultimate handheld permanent marker. Compact, Ergonomic Design Weighs 4.5 pounds (2.0kg) Available with four 25S or two 150SA Marking Pins Marks up to eight .125" (3mm) high Characters per Second Marking Windows up to 50mm x 13mm (2" x 0.5") Depths up to 0.010" (.25mm) in Mild Steel Rugged Rack-and-Pinion X/Y Platform for low maintenance operation Simple Shutter Plate Protects Head from Solid and Liquid Contaminants Detachable Electronics Cable for Improved Serviceability Compact, convenient TMC420 Controller with rubber keyboard and 4-line LCD display - no PC required Also Available Without Handle and Stand-Off for Fixtured Applications Automatically generates serial numbers, date, time and shift codes Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
