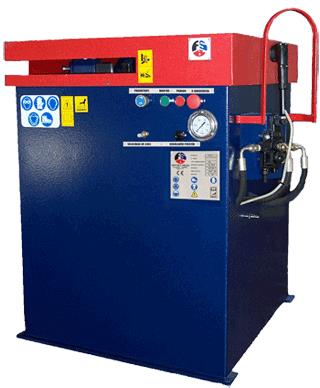

Spiral Forging Unit FV-18

Hydraulic machine equiped with 3 HP (2,5 Kw.) motor to produce close scroll end bars by not forming on square, round and flat mild steel bars with a maximum tensil strengh of 45 Kg./ mm2. To heat mild steel bars is necces......Hydraulic machine equiped with 3 HP (2,5 Kw.) motor to produce close scroll end bars by not forming on square, round and flat mild steel bars with a maximum tensil strengh of 45 Kg./ mm2. To heat mild steel bars is neccesary to use a forge, also avialable, to get the appropiate temperature. Production: Close scroll end bars on square, round and flat mild steel bars. In an easy way it can get these forge end bars combining the pressure of the hydraulic system with the rotary movement, controlling every step with just one drive handled with the right hand, while the left one is holding the working bar Round bar Up to 20 mmø / 3/4"ø Square bar Up to 16x16 mm / 5/8" x 5/8" Flat bar Up to 20x10 mm / 3/4" x 3/4"
