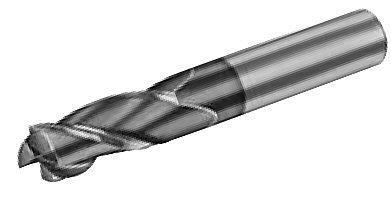

END MILLS Coated AEMM Series

Shank Diameter -0.0025 to -0.008 mmCutter Diameter 1 to 3 mm +0.000 to -0.014 mm 4 to 6 mm +0.000 to -0.018 mm 7 to 10 mm +0.000 to -0.036 mm 11 to 18 mm +0.000 to -0.043 mm 20 mm +0.000 to -0.052 mm 25 mm +0.000 to -0.06......Shank Diameter -0.0025 to -0.008 mmCutter Diameter 1 to 3 mm +0.000 to -0.014 mm 4 to 6 mm +0.000 to -0.018 mm 7 to 10 mm +0.000 to -0.036 mm 11 to 18 mm +0.000 to -0.043 mm 20 mm +0.000 to -0.052 mm 25 mm +0.000 to -0.062 mm T.I.R. Maximum 0.012 mmThese universal application type end mills feature a slightly increased flute and overall length for greater versatility.The conventional tool geometry supports applications in a wide scope of different materials, ranging from soft to hard.
