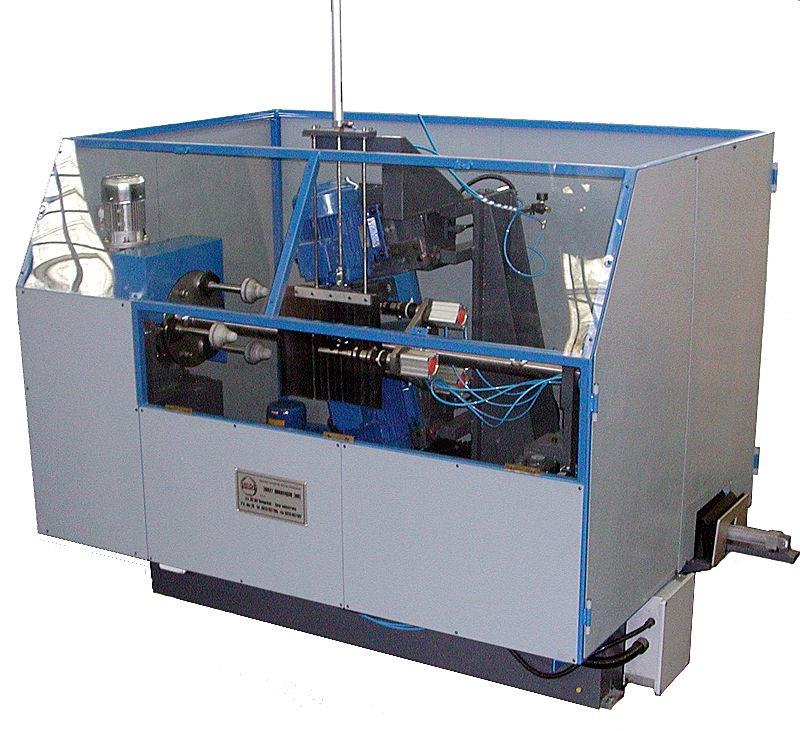

automatic super-finishing machine

machine ldt/1000. special machine to polish small items made of brass, steel, plexiglas etc, such as pipes, caps, rings etc. the pieces can have a length between 50 and 1000mm. the first working piece is clamped between 2......machine ldt/1000. special machine to polish small items made of brass, steel, plexiglas etc, such as pipes, caps, rings etc. the pieces can have a length between 50 and 1000mm. the first working piece is clamped between 2 live centers (mounted on a 3 position dividing table). at every rotation of the dividing table, a piece (situated into the load position) moves to the first working station (rough machining), where it starts turning the piece in the first working station moves to the second one (finishing), while the piece situated into the second station returns into the load position, than it is picked up and replaced with a new working piece. each working group is equipped with 2 slides, the one allowing the approach of the polishing brushes to the piece, the other allowing the longitudinal sliding of the brushes in the 2 directions. the working cycle is controlled by a timer and the rotation of the pieces by an adjustable speed motor.
