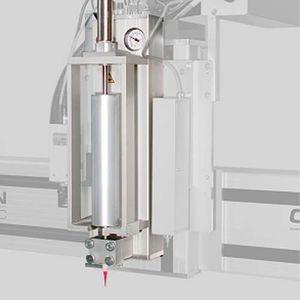

dispenser head

ivd - pasty dispensing head for highly viscous media the dispensing head is the essential part of every dispensing machine. it distinguishes itself by its highly precise, digitally controlled gear wheel pump, which is con......ivd - pasty dispensing head for highly viscous media the dispensing head is the essential part of every dispensing machine. it distinguishes itself by its highly precise, digitally controlled gear wheel pump, which is controlled by the datron iservo motor. a datron dispensing head is well suited for dispensing all conventional 1c materials, such as silicones and ms polymers in the viscosity range of 100,000 - 1,000,000 mpas. with the special pump design, filled abrasive media can also be optimally dispensed, up to a grit size of 50 m. the digitally controlled iservo motor is able to position the gear wheel pump to a precision of 1 / 40 000 turn. this allows the smallest amounts to be dispensed in a process-sure way. non-linear flow properties of the material can be compensated with the software.
