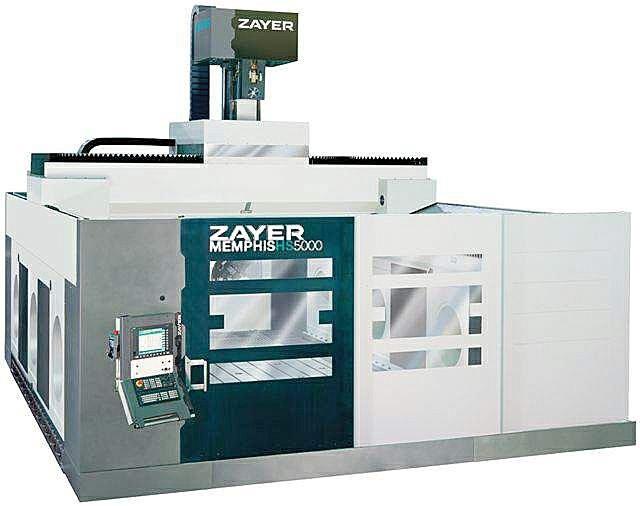

5-axis vertical spindle and mobile gantry milling machine

this machine of five hubs and great benefits is an itemizing of the successful memphis and goes directed to the machining one of complex surfaces that require high precision.technical characteristics surface table 4,500 x......this machine of five hubs and great benefits is an itemizing of the successful memphis and goes directed to the machining one of complex surfaces that require high precision.technical characteristics surface table 4,500 xs 3,000 mm.longitudinal route 5,000 mm.cross-sectional route 3,000 mm.vertical route 1,250 mm.width between columns 4,000 mm.fast advances: x, and, z: 50.000 mm/min.atc 20 toolingmall pillow twist electromandrino 8,000 min-1, 36 kw interchangeable with electromandrino of 24,000 min-1, 36 kwcnc siemens 840dits objective is to satisfy needs with finished roughdressing and with light materials with the aeronautical sector, as well as finished of molds and the dies of great dimensions. in its design the influence of the changes of temperature has been taken care of with mimo and thanks to its symmetrical structure, sheep and car in box-in-box and double spindle, is obtained geometric high accuracy. memphis hs has a twist mall pillow of continuous turns. the machine offers interchangeable electromandrinos with different characteristics to adapt itself to any necessity of the client. powerful and robust it assures a high productivity, providing to the end users products of greater quality and competitiveness.
