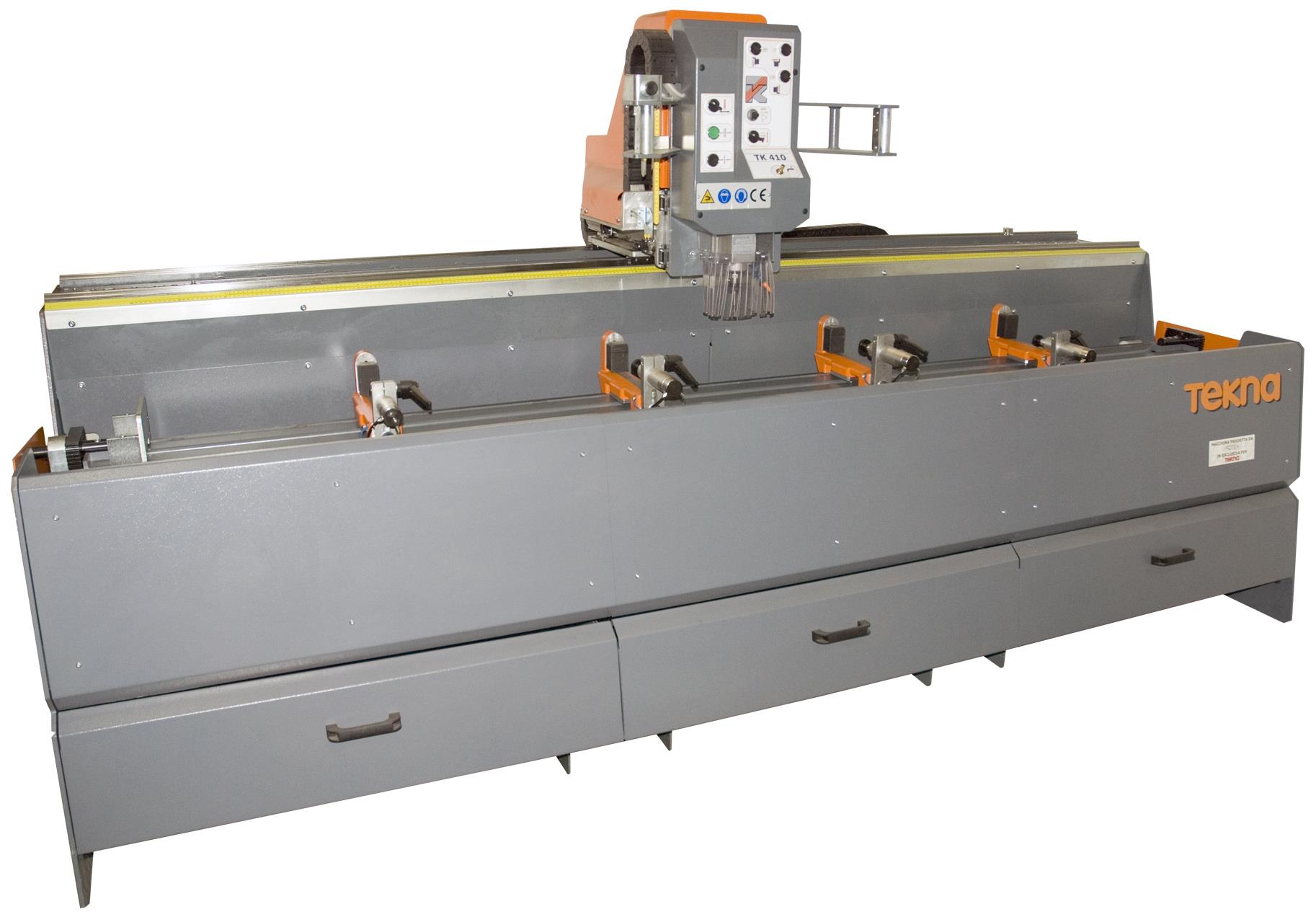

TK 410 - ONE SPINDLE COPY ROUTER

Machining on three faces. Milling capacity: X= 2800 mm, Y= 200 mm, Z= 150 mm. Very sturdy structure also suiteble for machining steel thick up-to 3 mm. Axes X, Y, Z move on recirculating ball slideways. Spindle with inver......Machining on three faces. Milling capacity: X= 2800 mm, Y= 200 mm, Z= 150 mm. Very sturdy structure also suiteble for machining steel thick up-to 3 mm. Axes X, Y, Z move on recirculating ball slideways. Spindle with inverter complete with adjustable revolving speed from 5400 to 12000 rpm. Oleo-pneumatic down stroke and up stroke of the work unit with 2 adjustable speeds: rapid (approach) and slow (milling). Stop device on the Z axis to eliminate the machining vibrations. Clamps complete with high/low pressure safety device. Adjustable zero stops positioned on the two ends of axis X. Atomized automatic lubrication. Complete with three containers for chips and swarfs.
