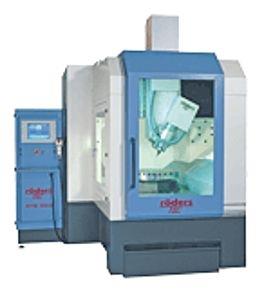

high speed 5-axis cnc vertical machining center

bridge type design with 2 axes rotary table integrated into the x-axis high dynamics and high stiffness of rotary axes with torque drives ==> dynamic 5 axes machining available feed rate 0 - 30 000 mm/min milling spindle ......bridge type design with 2 axes rotary table integrated into the x-axis high dynamics and high stiffness of rotary axes with torque drives ==> dynamic 5 axes machining available feed rate 0 - 30 000 mm/min milling spindle standard 42 000 rpm, 14 kw, hsk e40, maximum tool diameter 16 mm table surface diameter 405 mm, large pallets from system 3r, erowa and others can be used swivelling range -2 to 92 turning range unlimited machining range x axis with horizontal positioned table across the whole table with vertical positioned table up to 300 mm (12 in.) above the table surface machining range y axis across the whole table and to the tool changer machining range z axis 300 mm, maximum height above horizontal positioned table is 350 mm for a tool with a total length for tool and tool holder of 110 mm tool changer 26 stations, including laser for tool measuring choice between environmentally friendly spray cooling or standard coolant overpressure air system for temperature stabilisation of the machine optimal removal of chips with a conveyor particularly good view into and access of the machining area crane loading is possible workpiece weight max. 125 kg machine weight 7 t (15400 ibs) space requirements (mm) 2350 x 4500 x 2700
