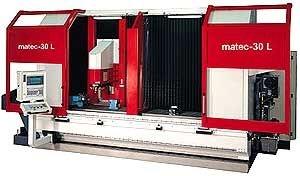

3-axis cnc vertical machining center with traveling column

characteristics fixed machine table for machining on double work station and on the total length of the bed sk40 tool changer for tools according to din 69 871 tool magazine with a capacity of 24 tool pockets, travelling ......characteristics fixed machine table for machining on double work station and on the total length of the bed sk40 tool changer for tools according to din 69 871 tool magazine with a capacity of 24 tool pockets, travelling in the x-axis (protected within the machine column) travelling paths in the x-axis 1,000 - 12,000 mm tool change 2.5 sec. chip-to-chip time 4.5 sec. acceleration of axes 0.19 sec. to 30 m/min feed/rapid traverse speed 30 m/min with a.c. servomotors in all axes a.c. main spindle drive 16 kw (opt. 30 kw) direct drive, oriented spindle mount drilling capacity up to 60 mm into solid material in steel e 335 / aisi 1040 milling capacity up to 500 cm3/min in steel e 335 / aisi 1040 main spindle speed 20 - 6.000/ (9,000/12,000/15,000/18,000) rpm high frequency spindle up to 42,000 rpm with tool changer, machining of graphite, non-ferrous metal, and plastics
