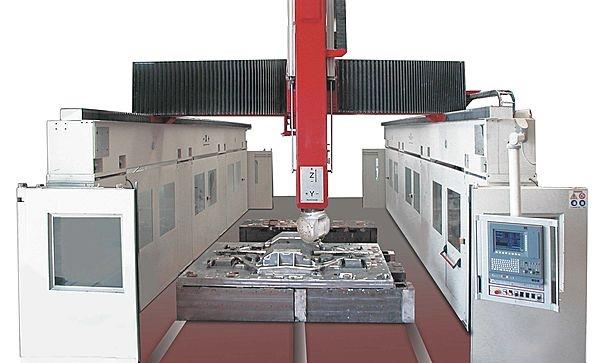

5-axis vertical milling machine for die, mold and composite machining

structure: moving bridge axis movement: brushless servomotors, recirculating ball screws, rolling slide slideways x-axis stroke from 1.8 up to 24 mt y-axis stroke from 2.4 up to 4.8 mt z-axis stroke from 1 up to 3 mt mach......structure: moving bridge axis movement: brushless servomotors, recirculating ball screws, rolling slide slideways x-axis stroke from 1.8 up to 24 mt y-axis stroke from 2.4 up to 4.8 mt z-axis stroke from 1 up to 3 mt machining unit from 15 kw to 24 kw with torques from 12 nm to 60 nm tool-holder cones: hsk 63 f or a model linear axis position precision (x, y and z)= +/- 0,04 mm/m linear axis repeatibility (x, y and z)= +/- 0,02 mm/m rotary axis positioning precision c= +/- 7 a= +/- 13 rotary axis repeatibility c= +/-3,5 a= +/- 6,5 siemens 840 d or heidenhain itnc 530 numerical control units
