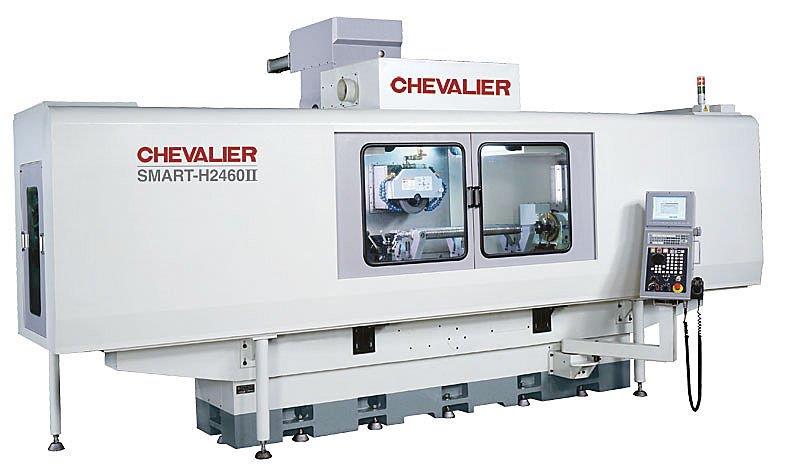

traveling column surface grinding machine

15-25hp column type smart grinders finally, a bigger, more powerful and smarter grinder for heavy duty creepfeed, profile and form grinding applications description smart-2440ii smart-2460ii smart-2480ii table size 24" x ......15-25hp column type smart grinders finally, a bigger, more powerful and smarter grinder for heavy duty creepfeed, profile and form grinding applications description smart-2440ii smart-2460ii smart-2480ii table size 24" x 40" 24" x 60" 24" x 80" max grinding length longitudinal 40" 60" 80" max grinding width crosswise 24" 24" 24" max dist from table to spindle centerline 33.5" 33.5" 33.5" table speed, infinitely variable 10-82fpm 10-82fpm 16-82fpm cross transverse rapid travel 0-16fpm 0-16fpm 0-16fpm wheelhead vertical infeed:rapid travel 0-19.7ipm 0-19.7ipm 0-19.7ipm standard grinding wheel (dia x width x bore) 16"x3"x5" opt 20x3x5 16"x3"x5" opt 20x3x5 16"x3"x5" opt 20x3x5 rated power, approx 25hp opt 35hp 25hp opt 35hp 32hp spindle power rating 15hp/4p opt 15hp/6p & 25hp/6p & 4p 15hp/4p opt 15hp/6p & 25hp/6p & 4p 15hp/4p opt 15hp/6p & 25hp/6p & 4p switch between manual, semi-automatic, fully automatic or cnc. "macro zone allows the operator to create his own programs automatic wheel dressing can be done while machining or at end of cycle. canned cycles: slicing, plunge, criss-cross and step with optional hydraulic creep feed. conversational control language simulation mode eliminates dry runs counterbalance system provides greater downfeed accuracy. optional air or liquid cooling system double v design, hand-scraped, turcite-b coated longitudinal table ways separate hydraulic unit 3/4 class c2 hardened and ground ballscrews with mitsubishi ac servo motors fully automatic lubrication system fully supported table eliminates overhang problems. one-piece meehanite cast-iron structure
