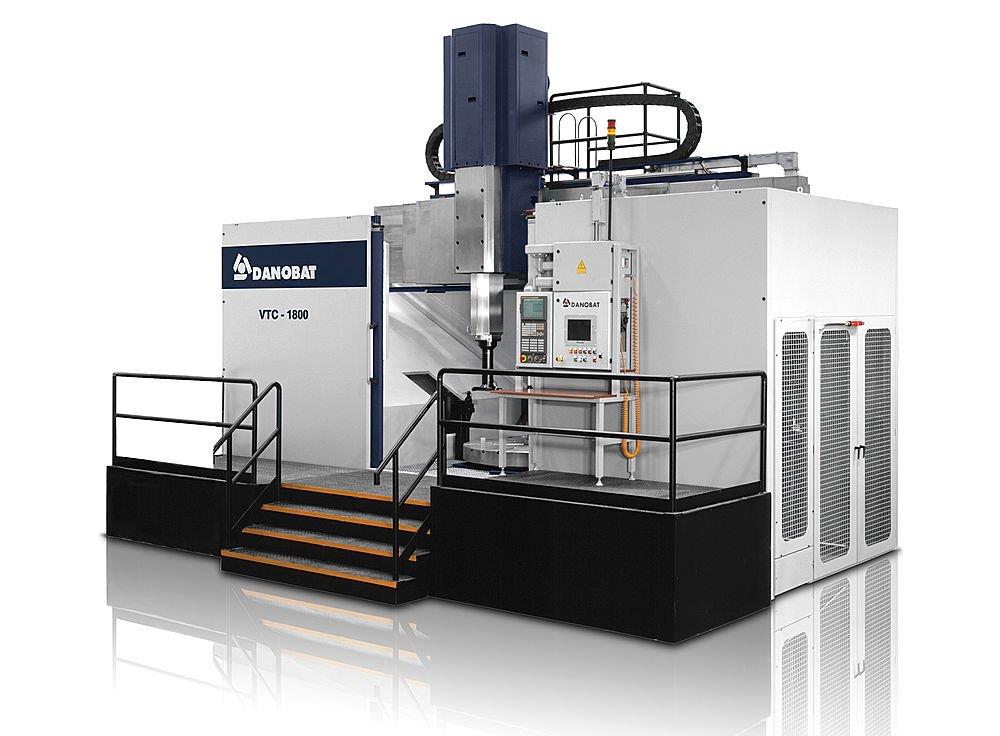

3-axis vertical turning center

the vertical turning centres vtc has a high quality production capability and is of a modular design which provides the following machine specification options for each basic size of machine: fixed cross rail models provi......the vertical turning centres vtc has a high quality production capability and is of a modular design which provides the following machine specification options for each basic size of machine: fixed cross rail models provide high rigidity and operating accuracy. elevating cross rail models are recommended for greater working heights. live spindle and full contouring c axis is available on both fixed and elevating cross rail models, which enable to do turning, drilling, threading, milling and grinding operations. table diameter: 1000-5000 mm turning diameter: 1200-6000 mm altura mecanizable: up to 2800 mm maximum height table to ram: 1200-3000 mm table drive motor: up to 100 kw ram size: 250 x 250 mm - 300 x 300 mm live spindle power: 17-37 kw vertical travel of cross rail: 600-1000 mm
