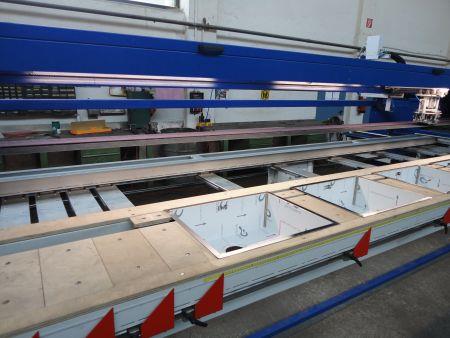

NC controlled grinding machine

mechanical data grinding belt11500 x 150 mm or thinner (min. 100 mm) diameter of guide roller450 mm grinding shoe100x150mm custom made table size4500x1250mm max. weight of workpiece300kg engine power7,5 kW, 400 V/50 Hz gr......mechanical data grinding belt11500 x 150 mm or thinner (min. 100 mm) diameter of guide roller450 mm grinding shoe100x150mm custom made table size4500x1250mm max. weight of workpiece300kg engine power7,5 kW, 400 V/50 Hz grinding belt speedca. 5 - 30 m/sec grinding shoe speed0,5-25 m/min connecting piece diameter200mm air pressure6 bar grinding table speed0,5 - 25 m/min lift of grinding table500mm weight3200 kg electrical data engine power grinding belt7,5 kW engine power grinding shoe feed1,48 kW (6 Nm) engine power table feed0,63 kW (1,6 Nm) engine power table lift1,48 kW (6Nm)
