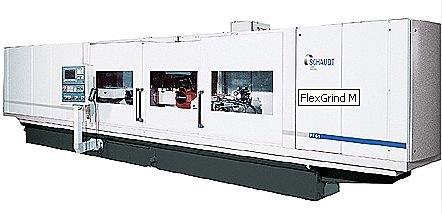

cnc precision cylindrical grinding machine

its table-type construction offers a very high level of rigidity. the moving axes are deliberately positioned one above the other. the tray system / the integration of bed and assembly cooling systems allows temperature s......its table-type construction offers a very high level of rigidity. the moving axes are deliberately positioned one above the other. the tray system / the integration of bed and assembly cooling systems allows temperature stability to be achieved inside the machine. thermal influences and elastic deformations that occur nonetheless can be compensated through measurement-controlled grinding and subsequent measuring and recording using the easyto-program diatronic measuring system. the high degree of universality of the machine system means that production in a single clamping operation is possible. when grinding heavy workpieces, the excellent rigidity of the system as a whole is maximised by the compact, revolving tailstock quill. when grinding non-round contours, the float-free workpiece drive is of great advantage. measurementcontrolled grinding allows extremely precise results to be achieved even at grinding lengths of more than 3,000 mm. to this end, there are linear measurement systems integrated into all of the technical axes. using a high-precision b-axis allows spot-precise taper grinding.
