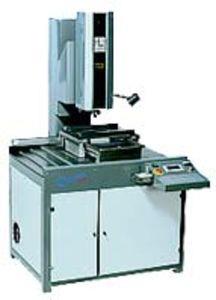

electrical discharge drilling machine (edm)

in cooperation with abacus gmbh we have developed the high-speed edm-drilling machines of the apos series. we offer you machines with motor-controlled table actuation, cnc-control, the proven ed-alpha head and the edm-hig......in cooperation with abacus gmbh we have developed the high-speed edm-drilling machines of the apos series. we offer you machines with motor-controlled table actuation, cnc-control, the proven ed-alpha head and the edm-high-speed generator in german first-class quality. clamping area mm: 430 x 330 x 250 (workpiece can stick out on 3 sides) x-,y-stroke motor-controlled mm: 350 x 250 table speed mm/min.: 0 - 1200 max. workpiece weight kg: 400 machine weight kg: 650 total width: 1100 mm total depth without pillar: 800 mm heigth: 1900-2230 mm head: coarse adjustment z: 20 - 350 mm eroding-axis speed 0 - 800 mm/min electrode diameter 0,1 - 6,0 mm electrode length: 400 mm travel distance controlled eroding-axis 300 mm direct measurement with encapsulated glass scales from heidenhain. all specifications are subject to change by the manufacturer.
