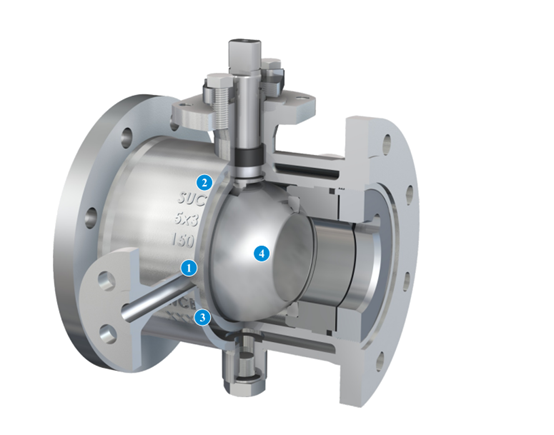

1 Full jacket insulation structure
· Heat medium pipe convection structure, reducing energy consumption

Long-term use can ensure no leakage of insulation and cooling media

2 The jacket pipe and the valve body are connected in a form-fitting manner
·Reduce deadweight
Increase strength
·Even heat medium flow
3 Large space design between jacket pipe and valve body
·Accommodate enough heat and cold insulation media

Can reliably ensure the temperature of pipeline media
4 Has all the characteristics and advantages of floating ball soft seal ball valve

- Technical parameters

Size range NPS 1/2-NPS 10 (DN 15-DN 250)
Pressure level ASME CLASS 150-1500 PN 10-PN 250
Temperature range -196°C-+260°C

Jacket heat medium pipe size is determined according to on-site process

For specifications and models of fixed ball jacket ball valve, please contact SUC Technical Department

- Design standards and specifications

Design standards ASME B16.34.API 6D API 608, BS 5351,GB/T 12237
Structural length standard ASME B16.10,GB/T 12221
Flange standard ASME, HG/T, GB/T, JB/T SH, DIN, JIS
Fire test API6FA, API607
Test standard API 598, IS0 5208GB/T 13927, JB/T 9092
Low fugitive emission test IS0 15848-1, TA-LUFT

- Application industry

Oil and gas
· Petrochemical

· Chemical industry

· Silicone

· Polysilicon
· Metallurgy
· Mining
· Electricity

· Coal chemical industry

- Application field

Liquid transportation

Gas transportation

Gas-liquid two-phase flow transportation
