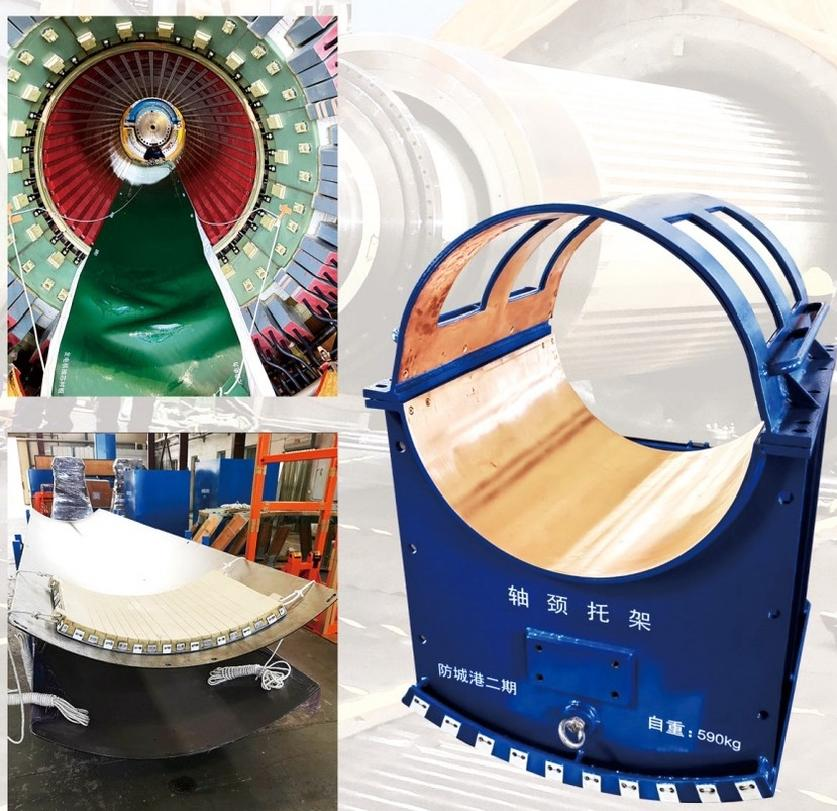

Generator rotor removal and installation device

The principle of generator rotor extraction device is: connect the special flange for generator rotor extraction to the generator rotor excitation end, assemble the balance pulley block, connect with the main machine with steel wire rope, and extract the rotor. The principle of the generator rotor penetration device is: the rotor is penetrated into the generator stator by the reaction force method. Fix the special fixed pulley block of the extraction device on the screw hole on the end face of the generator stator, and push the rotor into the stator bore with the reaction force through the matching connecting shaft and small beam.
