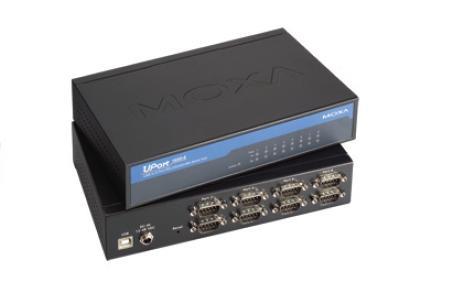

USB to RS-232 Converters UPort 1610-8

Features and Benefits Hi-Speed USB 2.0 for up to 480 Mbps USB transmission 921.6 Kbps maximum baudrate for super fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Built-in 15 KV ESD protection for all......Features and Benefits Hi-Speed USB 2.0 for up to 480 Mbps USB transmission 921.6 Kbps maximum baudrate for super fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Built-in 15 KV ESD protection for all serial ports IP30-rated, rugged metal housing COM port assignments maintained across different PCs Certified drivers provided for Windows (including Vista) and WinCE 5.0 Locking power cord Introduction Instant Plug & Play The UPort? 1610-8 USB-to-serial converters allow you to connect 8 RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort? 1610-8 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications. Simplified, Hassle-free Serial Port Expansion USB Plug & Play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports,saving on setup time and cost. Top Serial Performance Moxa’s 20-plus years of experience in serial board design is now built into a new top performance CPU called MOXA ART. This chip equips the UPort? 1600-8 converters with USB 2.0 (Hi-Speed 480 Mbps), a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode, making Moxa’s UPort? converters perform far better than the competition. USB ComplianceUSB 1.0/1.1/2.0 compliant Connector(s)USB type B Speed480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) ? Serial Interface Serial StandardsRS-232 Number of Ports8 ConnectorsDB9 male ? Serial Line Protection ESD Protection15 KV embedded ? Performance Baudrate50 bps to 921.6 Kbps ? Serial Communication Parameters Data Bits5, 6, 7, 8 Stop Bits1, 1.5, 2 ParityNone, Even, Odd, Space, Mark Flow ControlRTS/CTS, XON/XOFF I/O AddressAssigned by BIOS IRQAssigned by BIOS FIFO128 bytes ? Serial Signals RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND ? Driver Support Operating SystemsWindows (2000, XP x86/x64, 2003 x86/x64, Vista x86/x64) and WinCE 5.0 ? Physical Characteristics EnclosureSECC sheet metal (1 mm), IP30 protection Weight Product only: 835 g (1.84 lb) Packaged: 1435 g (3.16 lb) Dimensions204 x 44 x 125 mm (8.03 x 1.73 x 4.92 in) ? Environmental Limits Operating Temperature0 to 55°C (32 to 131°F) Operating Humidity5 to 95% RH Storage Temperature-20 to 75°C (-4 to 167°F) Regulatory ApprovalsEN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, FCC Part 15 Class A, UL, CUL, TüV ? Power Requirements Power Consumption230 mA @ 12 VDC (12 to 48 VDC external power) ? Warranty Warranty Period5 years DetailsSee www.moxa.com/warranty
