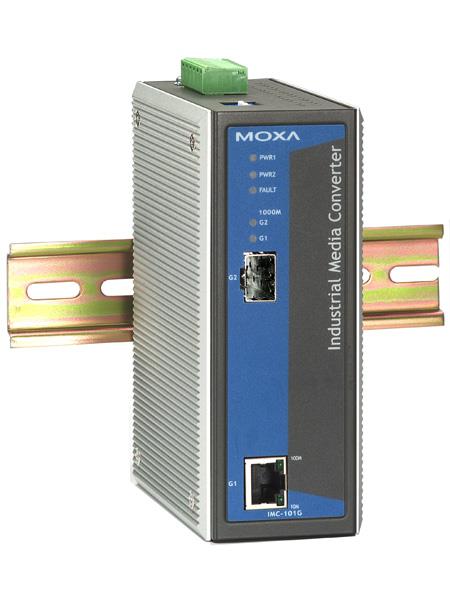

Ethernet-to-Fiber Converters IMC-101G Series

Features and Benefits 10/100/1000BaseT(X) and 1000BaseSX/LX/LHX/ZX supported Link Fault Pass-Through (LFP) (media converters should work as a pair)Power failure, port break alarm by relay output Redundant power input -40 ......Features and Benefits 10/100/1000BaseT(X) and 1000BaseSX/LX/LHX/ZX supported Link Fault Pass-Through (LFP) (media converters should work as a pair)Power failure, port break alarm by relay output Redundant power input -40 to 75°C operating temperature range (T models) Designed for hazardous locations Introduction The IMC-101G industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C. Technology: StandardsIEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX ? Interface: RJ45 Ports10/100BaseT(X) Fiber Port(s)Optional 1000BaseSX/LX/LHX/ZX (LC connector) LED IndicatorsPWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port) DIP SwitchesPort break alarm mask, Fault Pass-Through, Fiber AN/Force Alarm ContactOne relay output with current carrying capacity of 1A @ 24 VDC ? Optical Fiber: DistanceMulti mode: 1000BaseSX: 0 to 500 m, 850 nm (50/125 μm, 400 MHzkm) 0 to 275 m, 850 nm (62.5/125 m, 200 MHzkm) 1000BaseLX: 0 to 1100 m, 1310 nm (50/125 m, 800 MHzkm) 0 to 550 m, 1310 nm (62.5/125 m, 500 MHzkm)Single mode: 1000BaseLX: 0 to 10 km, 1310 nm (9/125 m, 3.5 PS/(nmkm)) 1000BaseLHX: 0 to 40 km, 1310 nm (9/125 m, 3.5 PS/(nmkm)) 1000BaseZX: 0 to 80 km, 1550 nm (9/125 m, 19 PS/(nmkm)) ? Power Requirements: Input Voltage24 VDC (12 to 45 VDC), redundant inputs Input Current(@ 24 V): 0.11A Overload Current Protection1.1A ConnectionRemovable terminal block Reverse Polarity ProtectionPresent ? Physical Characteristics: EnclosureIP30 protection, metal case Weight 630 g Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) InstallationDIN-Rail or Wall Mounting (optional kit) ? Environmental Limits: Operating Temperature0 to 60°C (32 to 140°F), -40 to 75°C (-40 to 167°F) for T models Storage Temperature-40 to 85°C (-40 to 185°F) Ambient Relative Humidity5 to 95% (non-condensing) ? Agency Approvals: EMIFCC Part 15, CISPR (EN55022) class A EMSEN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN61000-4-8 EN61000-4-11 SafetyUL508 ShockIEC60068-2-27 FreefallIEC60068-2-32 VibrationIEC60068-2-6 MTBF (meantime between failures)500,000 hrs Database: Telcordia (Bellcore), GB ? Warranty: Warranty Period5 years DetailsSee www.moxa.com/warranty
