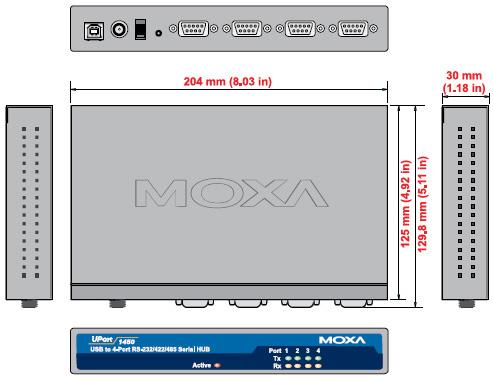

USB to RS-232/422/485 Converters UPort 1450/1450I

Features and Benefits Hi-Speed USB 2.0 for up to 480 Mbps USB transmission 921.6 Kbps maximum baudrate for super fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Built-in 15 KV ESD protection for all......Features and Benefits Hi-Speed USB 2.0 for up to 480 Mbps USB transmission 921.6 Kbps maximum baudrate for super fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Built-in 15 KV ESD protection for all serial ports 2 KV optical isolation protection (UPort? 1450I only) IP30-rated, rugged metal housing COM port assignments maintained across different PCs Certified drivers provided for Windows (including Vista) andWinCE 5.0 Choose bus power or external power Introduction Instant Plug & Play The UPort? 1450/1450I USB-to-serial converters allow you to connect 4 RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort? 1450 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications. Simplified, Hassle-free Serial Port Expansion USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports,saving on setup time and cost. Top Serial Performance Moxa’s 20-plus years of experience in serial board design is now built into a new top performance CPU called MOXA ART. This chip equips the UPort? 1450/1450I converters with USB 2.0 (Hi-Speed 480 Mbps), a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode, making Moxa’s UPort? converters perform far better than the competition. USB ComplianceUSB 1.1/2.0 compliant Connector(s)USB type B Speed480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) ? Serial Interface Serial StandardsRS-232/422/485 Number of Ports4 ConnectorsDB9 male ? Serial Line Protection ESD Protection15 KV embedded Optical Isolation Protection2 KV (UPort 1450I only) ? Performance Baudrate50 bps to 921.6 Kbps ? Serial Communication Parameters Data Bits5, 6, 7, 8 Stop Bits1, 1.5, 2 ParityNone, Even, Odd, Space, Mark Flow ControlRTS/CTS, XON/XOFF I/O AddressAssigned by BIOS IRQAssigned by BIOS FIFO128 bytes ? Serial Signals RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-4wTxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-2wData+(B), Data-(A), GND ? Driver Support Operating SystemsWindows (2000, XP x86/x64, 2003 x86/x64, Vista x86/x64) and WinCE 5.0 ? Physical Characteristics EnclosureSECC sheet metal (1 mm), IP30 protection Weight Product only: 720 g (1.59 lb) Packaged: 1345 g (2.96 lb) Dimensions204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in) ? Environmental Limits Operating Temperature0 to 55°C (32 to 131°F) Operating Humidity5 to 95% RH Storage Temperature-20 to 75°C (-4 to 167°F) Regulatory ApprovalsEN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, FCC Part 15 Class A, UL, CUL, TüV ? Power Requirements Power ConsumptionUPort? 1450 (12 to 48 VDC external power): 260 mA @ 12 VDC UPort? 1450I (12 to 48 VDC external power): 360 mA @ 12 VDC ? Warranty Warranty Period5 years DetailsSee www.moxa.com/warranty
