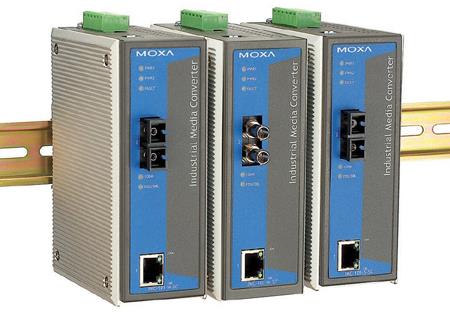

Ethernet-to-Fiber Converters IMC-101 Series

Features and Benefits 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X Link Fault Pass-Through (LFP) (media converters should work as a pair)Power failure, port break alarm by relay output Redundant power inputs -40 to ......Features and Benefits 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X Link Fault Pass-Through (LFP) (media converters should work as a pair)Power failure, port break alarm by relay output Redundant power inputs -40 to 75°C operating temperature range (T models) Designed for hazardous locations (Class 1 Div. 2/Zone 2) Introduction The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60°C, and an extended operating temperature of -40 to 75°C. All IMC-101 series are subjected to a 100% burn-in test. Technology: StandardsIEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), 100BaseFX ? Interface: RJ45 Ports10/100BaseT(X) Fiber Port(s)100BaseFX (SC/ST connectors) LED IndicatorsPWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port) DIP Switches100BaseFX Full/Half duplex selection, port break alarm mask Alarm ContactOne relay output with current carrying capacity of 1A @ 24 VDC ? Optical Fiber: Min. TX OutputMulit mode: -20 dBmSingle mode: 0 to 40 km, -5 dBm 0 to 80 km, -5 dBm Max. TX OutputMulit mode: -10 dBmSingle mode: 0 to 40 km, 0 dBm 0 to 80 km, 0 dBm RX Sensitivity-32 dBm (Multi),-34 dBm (Single) DistanceMulti mode: 0 to 5 km, 1300 nm (50/125μm, 800 MHzkm) 0 to 4 km, 1300nm (62.5/125μm, 500 MHzkm)Single mode: 0 to 40 km, 1310nm (9/125μm, 3.5 PS/(nmkm)) 0 to 80 km, 1550nm (9/125μm, 19 PS/(nmkm)) ? Power Requirements: Input Voltage24 VDC (12 to 48 VDC), redundant inputs Input Current(@ 24 V): 0.16A Overload Current Protection1.1A ConnectionRemovable terminal block Reverse Polarity ProtectionPresent ? Physical Characteristics: EnclosureMetal, IP30 protection Weight 630 g Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) InstallationDIN-Rail mounting, wall mounting (optional kit) ? Environmental Limits: Operating Temperature0 to 60°C (32 to 140°F), -40 to 75°C (-40 to 167°F) for T models Storage Temperature-40 to 85°C (-40 to 185°F) Ambient Relative Humidity5 to 95% (non-condensing) ? Agency Approvals: EMSEN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN61000-4-8 EN61000-4-11 SafetyUL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 Hazardous LocationUL/cUL Class1, Division 2, Groups A, B, C, and D, ATEX Class1, Zone 2, Ex nC IIC (IMC-101-M-ST, IMC-101-S-SC-80 pending) ShockIEC60068-2-27 FreefallIEC60068-2-32 VibrationIEC60068-2-6 MTBF (meantime between failures)401,000 hrs Database: MIL-HDBK-217F: GB 25°C MaritimeDNV, GL ? Warranty: Warranty Period5 years DetailsSee www.moxa.com/warranty
