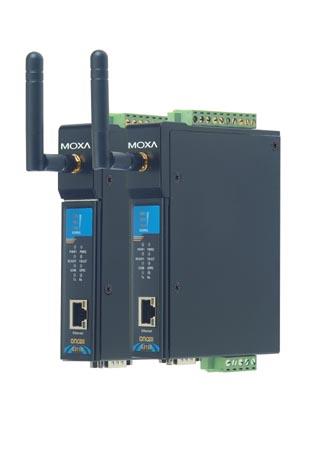

Features and Benefits ? Connect both Ethernet and serial devices to cellular networks ? Universal quad-band GSM/GPRS/EDGE-850/900/1800/1900-MHz ? Choice of operation modes, including TCP Server, TCP Clie......Features and Benefits ? Connect both Ethernet and serial devices to cellular networks ? Universal quad-band GSM/GPRS/EDGE-850/900/1800/1900-MHz ? Choice of operation modes, including TCP Server, TCP Client, UDP, Real COM, and RFC2217 ? Secure modes for TCP Server, TCP Client, and Real COM ? Redundant DC power input ? 2 digital inputs and 1 relay output ? Centralize private IP management software ? DIN-Rail mountingOverview The OnCell G3110 and G3150 industrial RS-232 and RS-232/422/485 GSM/GPRS/EDGE IP gateway are designed to transmit data transparently over GSM/GPRS/EDGE cellular networks. The Real COM operation mode automatically generates a virtual COM port to match serial ports supported by the OnCell G3110/3150, allowing you to communicate with remote serial devices. The OnCell G3100 can transmit data from both serial devices and Ethernet devices to a WAN interface. To achieve this Ethernet-to-cellular function, the OnCell G3100 works in a manner similar to a router. All Ethernet devices connected to the OnCell’s LAN port will be hidden from the outside world with OnCell’s NAT function. LAN Interface Ethernet10/100 Mbps, RJ45 connector, Auto MDI/MDIX Number of Ports1 Magnetic Isolation Protection1.5 KV built-in ? Cellular Interface StandardsGSM/GPRS/EDGE Band OptionsQuad-band 850/900 and 1800/1900 MHz EDGE Multi-slot ClassClass 12 GPRS Multi-Slot ClassClass 12 GPRS Terminal Device ClassClass B GPRS Coding SchemesCS1 to CS4 Tx Power1 watt GSM 1800/1900, 2 watts EGSM 850/900 SIM Interface?Number of SIMs: 1 ?SIM Control: 3 V ? Serial Interface Serial StandardsG3110: RS-232 (DB9 male connector) G3150: RS-232 (DB9 male connector), RS-422/485 (5-pin terminal block connector) Number of Ports1 ESD Protection15 KV Power EFT/Surge Protecction2 KV ? Serial Communication Parameters Data Bits5, 6, 7, 8 Stop Bits1, 1.5, 2 (when parity = None) ParityNone, Even, Odd, Space, Mark Flow ControlRTS/CTS, XON/XOFF Baudrate50 bps to 921.6 Kbps ? Serial Signals RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422Tx+, Tx-, Rx+, Rx-, GND RS-485-4wTx+, Tx-, Rx+, Rx-, GND RS-485-2wData+, Data-, GND ? I/O Interface Alarm Contact1 relay output with current carrying capacity of 1A @ 24 VDC Digital Inputs2 electrically isolated inputs ? +13 to +30 V for state “1” (On) ? +3 to -30 V for state “0” (Off) ? Software Network ProtocolsICMP, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, SMTP, HTTPS, SNTP, ARP, SSL Configuration and Management OptionsSNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP Report, Web/Telnet/Serial-Console/SSH AuthenticationLocal user-name and password SecurityAccessible IP list UtilitiesProvided for Windows 95/98/ME, Windows NT, Windows 2000/XP/2003/Vista/Server-2008, Windows XP/2003/Vista/Server-2008 x64 Edition Supported Operating ModesReal COM, Secure Real COM, TCP Server, Secure TCP Server, TCP Client, Secure TCP Client, UDP, RFC2217, Ethernet Modem, Virtual Modem, SMS Tunnel Windows DriversWindows 95/98/ME, Windows NT, Windows 2000/XP/2003/Vista/Server 2008, Windows XP/2003/Vista/Server 2008 x64 Edition Fixed TTY DrivesSCO Unix, SCO OpenServer 5, SCO OpenServer 6, UnixWare 7, SVR4.2, QNX 4.25, QNX 6, olaris 10, FreeBSD 5, FreeBSD 6 Linux Real TTY DriversLinux kernels 2.2.x, 2.4.x, 2.6.x Router/FirewallNAT, port forwarding ? Management Software OnCell Central ManagerCentralized management solution for accessing private IPs from the Internet ? Physical Characteristics HousingAluminum, providing IP30 protection Weight 440±5 g Dimensions28 x 126 x 93 mm (1.10 x 4.96 x 3.66 in) ? Environmental Limits Operating Temperature-30 to 55°C (-22 to 131°F) Operating Humidity5 to 95% RH Storage Temperature-40 to 75°C (-40 to 167°F) ? Power Requirements Input Voltage12 to 48 VDC Data Link335 to 1185 mA (peak) @ 12 V ? Regulatory Approvals SafetyUL: UL60950 EMCCE: EN55022 Class A / EN55024 FCC: FCC part 15 subpart B, Class A EN61000-4-2 (ESD) Level 4 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 4 EN61000-4-5 (Surge) Level 3 EN61000-4-8 Level 3 EN61000-4-12 Level 3 RFFCC Part22H FCC PART24E EN301 489-1 EN301 489-7 EN301 511 PTCRB ? Reliability MTBF (meantime between failures)G3110/G3150: 339045 hours ? Warranty Warranty Period5 years DetailsSee www.moxa.com/warranty
