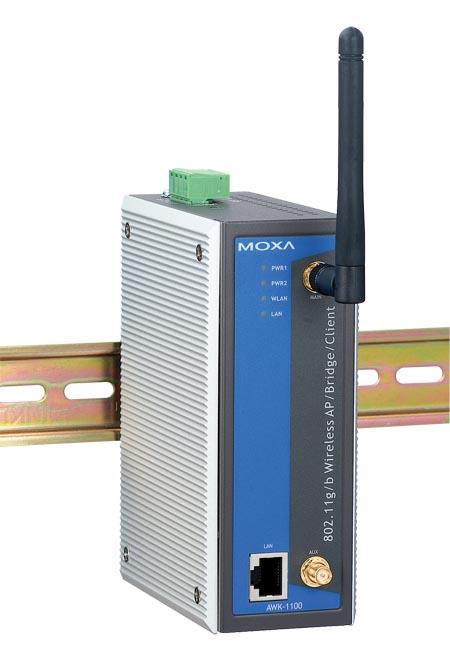

Industrial Wireless AP/Bridge/Client AWK-1100 Series

Features and Benefits IEEE 802.11g/b compliant Power input by redundant 24 VDC power inputs or Power-over-Ethernet Powerful security with WPA/802.1X/MAC address filtering DIN-Rail or panel mounting ability IP30 protected ......Features and Benefits IEEE 802.11g/b compliant Power input by redundant 24 VDC power inputs or Power-over-Ethernet Powerful security with WPA/802.1X/MAC address filtering DIN-Rail or panel mounting ability IP30 protected high-strength metal housing Introduction Are your industrial applications hard to wire, or are your wiring costs out of control Are you already using mobile equipment that connects over a TCP/IP network If so, then the AWK-1100 Access Point/Bridge/AP Client could be what you re looking for. The AWK-1100 is rated to operate at temperatures ranging from 0 to 60°C and is rugged enough for any harsh industrial environment. Installation is easy, with either DIN-Rail mounting or distribution boxes. The DIN-Rail mounting ability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-1100 a convenient yet reliable solution for any industrial wireless application. Advanced Security Capability 64-bit and 128-bit WEP (Wired Equivalent Privacy) Enable/disable SSID broadcasts MAC-address-based access control IEEE 802.1X/RADIUS WPA (Wi-Fi Protected Access) Useful Utilities and Remote Configuration Firmware upgrade from TFTP or HTTP Web-based Management Supports SNMP and UPnP Configuration backup and reset WLAN: StandardsIEEE 802.11g/b for Wireless LAN IEEE 802.3u 10/100BaseT(X) for Ethernet LAN IEEE 802.3af for Power-over-Ethernet Frequency Range2.4-2.4835 GHz, Direct Sequence Spread Spectrum (DSSS) Data Rate & ModulationOFDM @ 54 Mbps, CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, and DBSK @ 1 Mbps Operating ChannelsUSA: 1-11 (US) Europe: 1-13 (EU) Japan: 1-14 (JP) Security64-bit and 128-bit WEP encryption, WPA (IEEE 802.1X/RADIUS and TKIP) Data Rates1 Mpbs, 2 Mbps, 5.5 Mbps, 6 Mbps, 9 Mbps, 11 Mbps, 12 Mbps, 18 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps Transmit PowerTyp. +18 dBm (+/- 1.5 dBm) @ 11 Mbps, +14 dBm (+/- 1.5 dBm) @ 54 Mbps RX Sensitivity802.11b: -81 dBm @ 11 Mbps, -85 dBm @ 5.5 Mbps, -86 dBm @ 2 Mbps, -87 dBm @ 1 Mbps802.11g: -68 dBm @ 54 Mbps, -70 dBm @ 48 Mbps, -74 dBm @ 36 Mbps, -78 dBm @ 24 Mbps, -81 dBm @ 18 Mbps, -84 dBm @ 12 Mbps, -85 dBm @ 9 Mbps, -86 dBm @ 6 Mbps ? Software: ProtocolsHTTP, DHCP, TCP/IP, RADIUS ConfigurationWeb-based management Client OS SupportWindows (95, 98, 2000, ME, NT, XP), Unix, Macintosh ? Interface: Antenna2 dBi omni-directional antenna with an RP-SMA connector RJ45 Ports10/100BaseT(X) auto negotiation speed LED IndicatorsPWR1, PWR2, WLAN, LAN (Link/ACT) ? Power Requirements: Input Voltage12 to 45 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE802.3af) Power Consumption0.3 A @ 24 V Overload Current Protection1.6 A ConnectionRemovable terminal block Reverse Polarity ProtectionPresent ? Physical Characteristics: Housingmetal, providing IP30 protection Weight 800g Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in.) InstallationDIN-Rail mounting, wall mounting (optional kit) ? Environmental Limits: Operating Temperature0 to 60°C (32 to 140°F) Storage Temperature-20 to 70°C (-4 to 158°F) Ambient Relative Humidity5% to 95% (non-condensing) ? Regulatory Approvals SafetyEN60950-1, UL60950-1 EMIFCC Part 15C EMCEN301 489-1/-17 Hazardous LocationUL/cUL Class I, Division 2, Groups A, B, C, and D; ATEX Class I, Zone 2, EEx nC IIC (Pending) RadioEN300 328 ? Reliability MTBF (meantime between failures)200,000 hrs database: MIL-HDBK-217F, GB 25°C ? Warranty: Warranty Period5 years DetailsSee www.moxa.com/warranty
