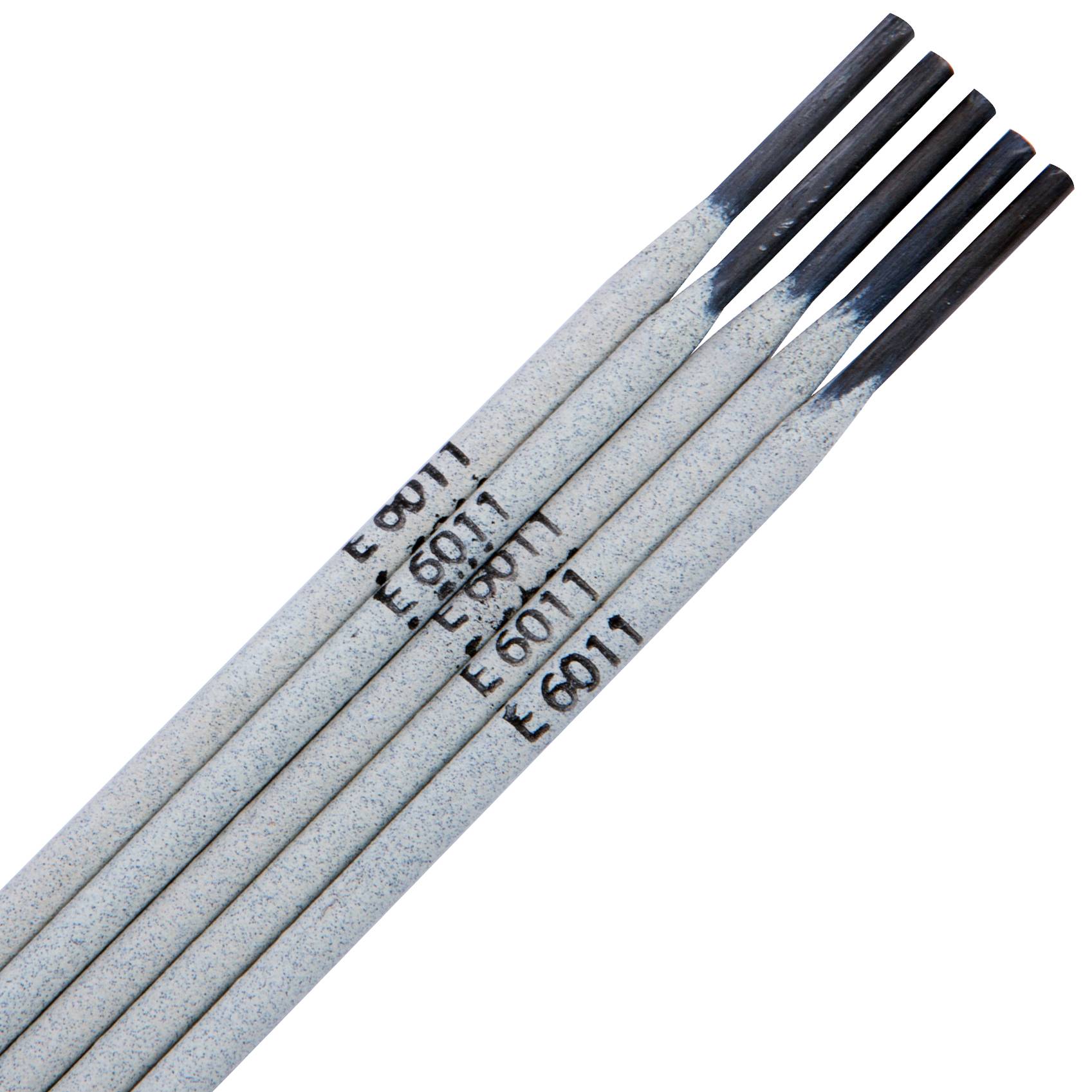

E6011
AWS A5.1 E6011
ISO2560-A E38 0 C 1 1
GB/T5117 E4311
Description：
Cellulose type electrodes for all positional welding with excellent vertical down welding performance and stronger arc force and deeper penetration. Suitable for butt welding、fillet welding and lap welding of plant chimney、transformer tanks, ships and external low carbon steel sheet structures of vehicle etc.
Diameters:
2.5mm, 3.2mm, 4.0mm, 5.0mm.
Typical Mechanical Properties (All Weld Metal):
|
Tensile strength(MPa): |
490 |
|
Yield strength(MPa): |
400 |
|
Elongation (%): |
28 |
|
Impact values(≥47J/-30℃): |
100 |
Typical Chemical Composition (Wt.%, All Weld Metal):
|
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
V |
|
0.077 |
0.73 |
0.016 |
0.017 |
0.15 |
0.024 |
0.016 |
0.002 |
0.009 |
Welding Current: (AC/DC+)
|
Diameter(mm) |
2.5 |
3.2 |
4.0 |
5.0 |
|
|
Current/A |
F/H |
60-90 |
70-110 |
110-150 |
150-200 |
|
Current/A |
V/OH |
50-80 |
60-100 |
100-140 |
140-180 |
Note:
1. The electrode get damp easily, please stock it in dry environment.
2. Please bake the electrodes 30-60 minutes in 70℃ before using if they are becoming damp.
