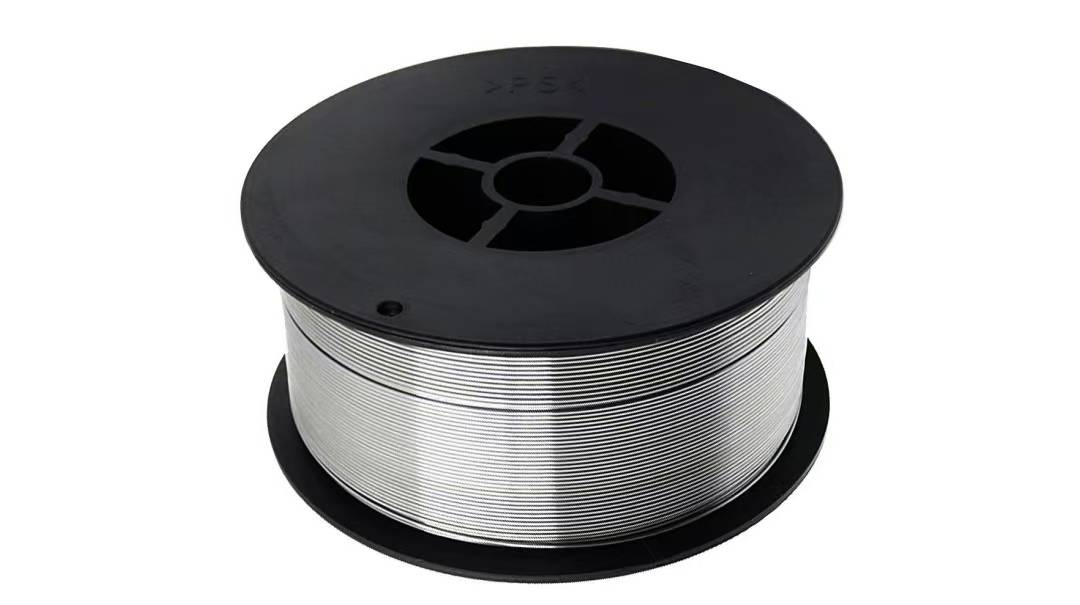

E71T-11
AWS A5.20 E71T-11
EN ISO17632-A-T42 Z Z Z N 1
Description：
E71T-11 is an all positional, self-shield flux cored wire suitable for multipass welding, can be used vertical down welding. With good welding Properties (All Weld Metal), like less spatter, stable arc, low fume, easy slag removal and excellent bead appearance.
Diameters:
0.6mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm.
Typical Mechanical Properties (All Weld Metal):
|
Tensile strength(MPa): |
545 |
|
Yield strength(MPa): |
455 |
|
Elongation(%): |
22.5 |
Typical Chemical Composition (Wt.%, All Weld Metal):
|
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Al |
|
0.15 |
1.01 |
0.010 |
0.014 |
0.25 |
-- |
-- |
-- |
1.40 |
Welding Current:(DCEN)
|
Diameter(mm) |
0.8 |
0.9 |
1.0 |
|
|
Current/A |
|
80-150 |
80-150 |
80-150 |
|
Voltage/V |
|
15-20 |
15-20 |
15-20 |
Note:
1.Rusty, oil stains, water and other impurity on the weld parts must be cleaned before welding.
2. Stock in dry environment, please use up in short time once opened.
