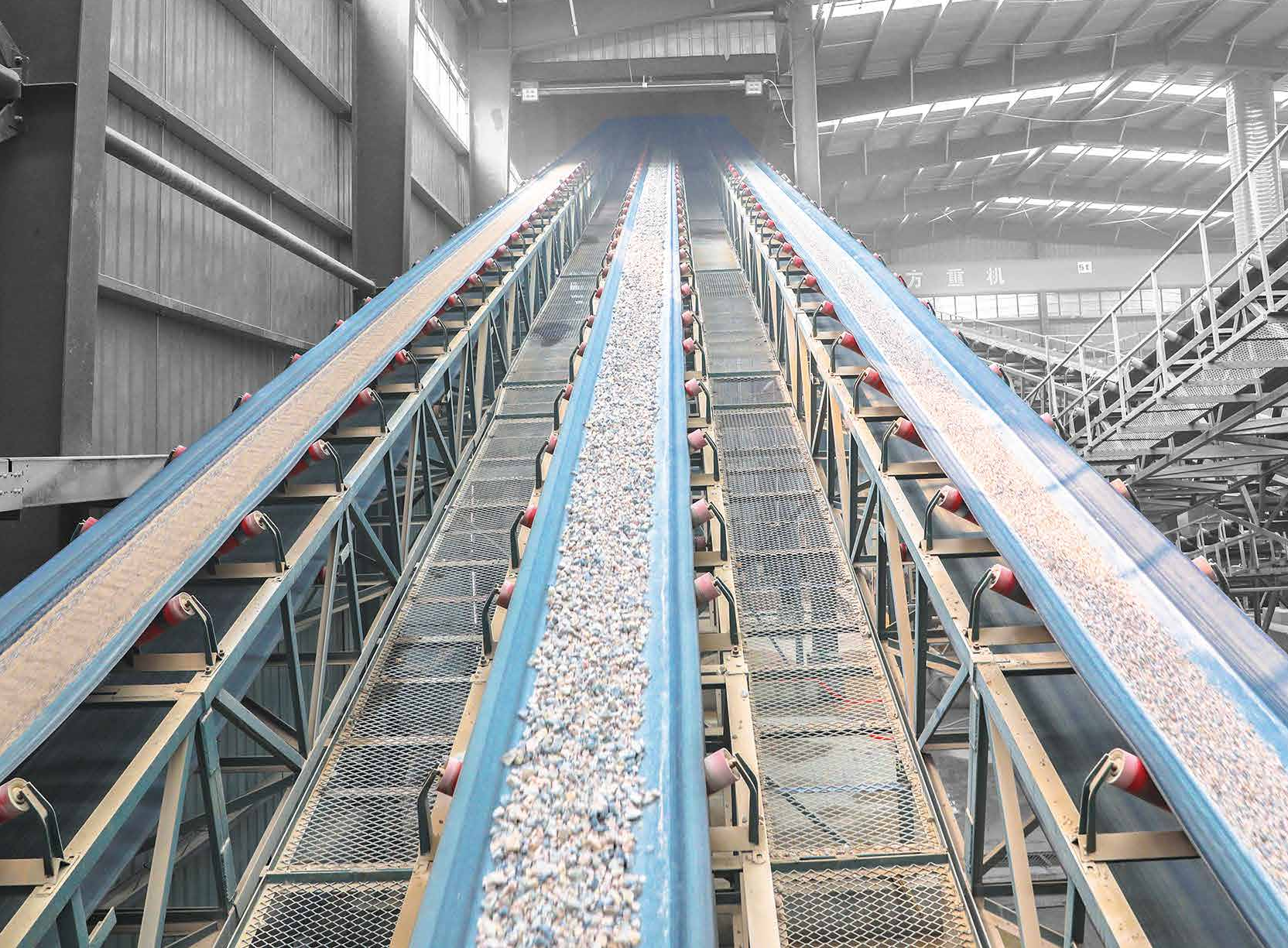

Belt Conveyor

Negotiable

Shanghai Shibang Machinery Sales Co.，Ltd.

Located Region:

China

Address:

No. 1688 Gaoke East Road, Pudong New Area, Shanghai City

Biz Consulting:

021-5838-2010

E-mail:

mill@sbm-mill.com

Online Contact

Favorite

Product Introduction:

Compared to traditional conveyors, the B6X series belt conveyor focuses more on the actual needs of the market and users. Its modular universal design and innovative head and tail frame designs ensure high output, efficiency, and low operating costs during operation, making it an ideal upgraded replacement for traditional belt conveyors.

Product Advantages:

Modular universal design for convenient maintenance and installation

Optimized structure for superior equipment performance

"Truss-style" structural design with excellent bending resistance

High-level protective measures for enhanced safety performance

Table of Specifications and Performance Parameters

Model	Bandwidth	Inclination	Belt speed	Maximum feed particle size	Conveying amount	Power
B6X Series	(mm)	(°)	(m/s)	(mm)	(t/h)	(kw)
B6X500	500	0-17 °	1.5	150	120	4-11(8≤L≤30m)
B6X650	650	0-17 °	1.6	200	150)	4-11(8≤L≤30m
B6X800	800	0-17 °	1.4	250	250	5.5-15(8≤L≤30m)
B6X1000	1000	0-17 °	1.4	320	350	7.5-18.5(8≤L≤30m)
B6X1200	1200	0-17 °	1.4-1.5	400	500	11-22(8≤L<30m)
B7X Series	(mm)	(°)	(m/s)	(mm)	(t/h)	(kw)
B7X500	500	0-17 °	1.6	150	120	4-15(8≤L≤120m)
B7X650	650	0-17 °	1.6	200	100-200	4-22(8≤L≤120m)
B7X800	800	0-17 °	1.6	250	170-350	5.5-37(8≤L≤120m)
B7X1000	1000	0-17 °	1.6-1.8	320	300-650	7.5-90(8≤L≤120m)
B7X1200	1200	0-17 °	1.6-1.8	400	500-950	11-110(8≤L≤120m)
B7X1400	1400	0-17 °	1.6-2	450	800-1500	15-132(8≤L≤120m)
B7X1600	1600	0-17 °	1.6-2.5	450	1400-2500	15-250(8≤L≤120m)
