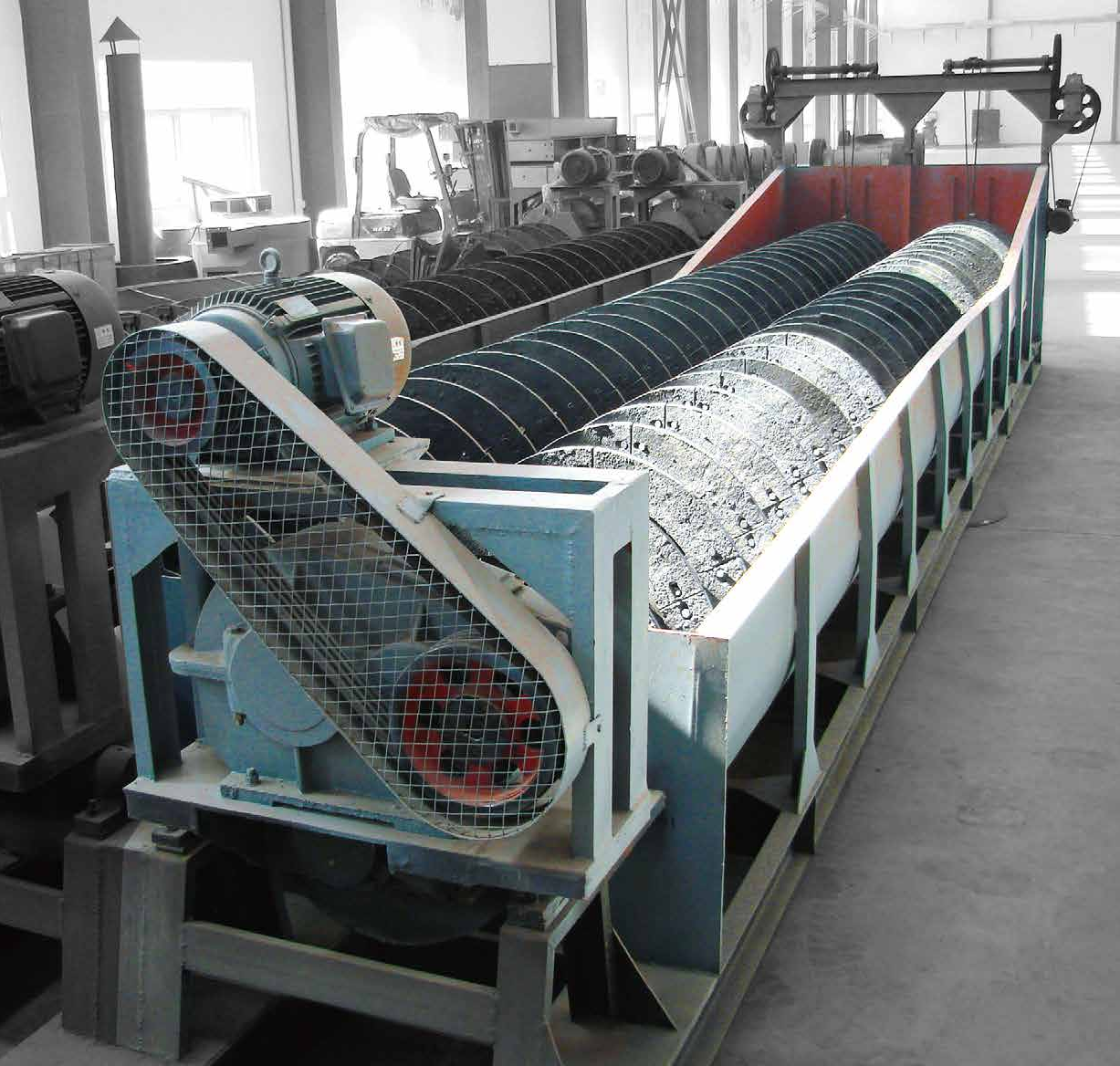

LSX Series Spiral Sand Washing Machine

Negotiable
China
No. 1688 Gaoke East Road, Pudong New Area, Shanghai City
021-5838-2010
Online Contact
Favorite
Product Introduction

Product Introduction:

The LSX series spiral sand washing machine is developed based on mature domestic spiral sand washing technology. As an auxiliary equipment for sand making, it consists of a motor, reducer, housing, spiral body, and weir plate. In actual production, the spiral sand washing machine effectively enhances the quality of finished sand.

Product Advantages:

Long spiral design for classification and cleaning, delivering excellent sand washing results

Simple overall structure, stable equipment operation

Material contact surfaces made of wear-resistant materials, ensuring longer service life

Reliable sealing structure, making maintenance and upkeep highly convenient

Product Parameters

Table of Specifications and Performance Parameters

Model

Spiral diameter

Sink length

Number of spirals

Feed particle size

Processing capacity

Water consumption

Speed

Motor power

Overall dimension

LSX Series

(mm)

(mm)

(1)

(mm)

(t/h)

(t/h)

(r/min)

(kw)

(mm)

LSX920

920

7585

1

≤ 10

100

29495

21

11

8420 × 2180 × 3960

2LSX920

920

7580

2

≤ 10

200

20-160

21

11 x 2

8420 × 3970 × 3960

LSX1120

1120

9750

1

≤ 10

175

20-150

17

18.5

10770 × 3950 × 4860

2LSX1120

1120

9750

2

≤ 10

350

40-300

17

18.5 × 2

10770 × 5260 × 4860
