VU Series Aggregate Optimization System

Negotiable
China
No. 1688 Gaoke East Road, Pudong New Area, Shanghai City
021-5838-2010
Online Contact
Favorite
Product Introduction

Product Introduction:

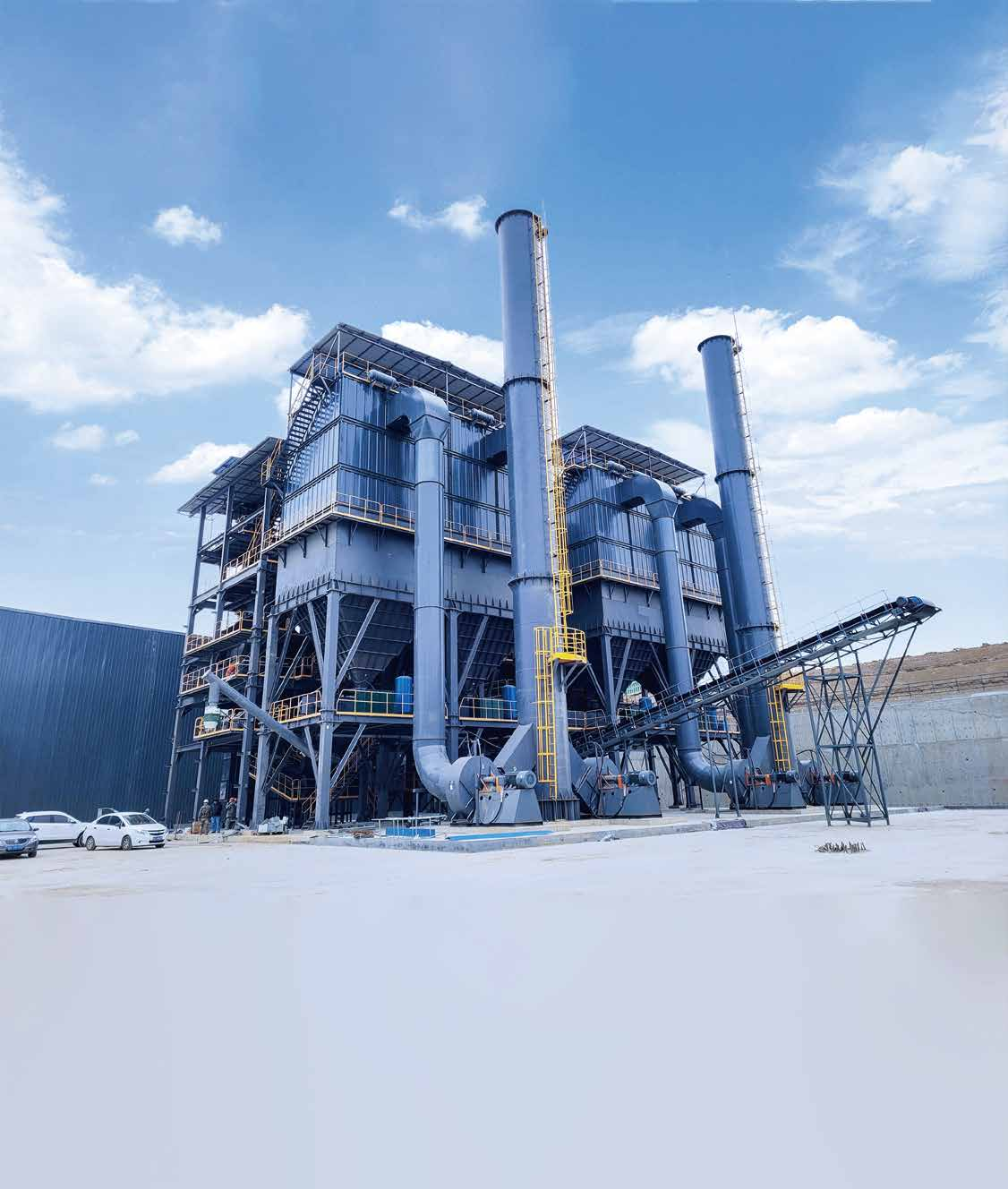

The VU series aggregate optimization system is a globally leading dry sand-making system, featuring a highly intensive, tower-style, fully enclosed design. It integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, moisture content control, and environmental protection processing. This system not only significantly enhances production efficiency but also comprehensively improves key indicators such as the particle shape, gradation, and powder content of manufactured sand, achieving performance comparable to natural sand. It creates new opportunities and value for the development of the sand, cement, and concrete industry chain.

Product Advantages:

High-quality manufactured sand

Outstanding environmental performance

High degree of automation

Adjustable and controllable processes

Product Parameters

Table of Specifications and Performance Parameters

Model

Feed particle size

Maximum Input

Stone powder content (adjustable)

Installed power

Overall dimension

Sand making

Shaping sand making

VU Series

(mm)

(t/h)

(t/h)

(/)

(kw)

(mm)

VU100

0-25

80-100

-

3-15%

~ 680

19000 × 10500 × 22400

VU150

0-25

125-150

-

3-15%

~ 995

21900 × 11300 × 22900

VU300

0-25

240-300

-

3-15%

~ 1990

25000 × 15200 × 22900

VUS301

0-40

100

300

3-15%

~ 622

21000 × 8000 × 27500

VUS501

0-40

150

550

3-15%

~ 966

21000 × 10000 × 30200
