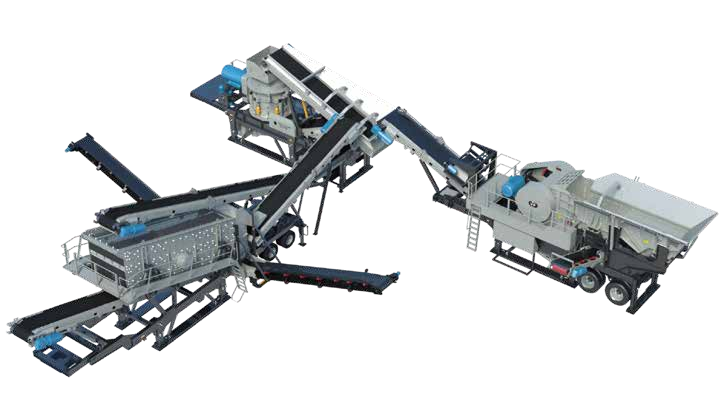

K3 Series Tire Mobile Production Line

Negotiable

Shanghai Shibang Machinery Sales Co.，Ltd.

Located Region:

China

Address:

No. 1688 Gaoke East Road, Pudong New Area, Shanghai City

Biz Consulting:

021-5838-2010

E-mail:

mill@sbm-mill.com

Online Contact

Favorite

Product Introduction:

The K3 series tire mobile production line comprises 18 mobile production line models, comprehensively covering applications for 100-300T hard rock (standard particle shape, fine crushing, and shaping), soft rock (standard particle shape, sand making), and soft rock construction waste processing. The series includes 5 frame types, equipped with 24 standard mobile equipment modules. The mobile production line is characterized by rapid assembly to meet specific operational requirements, modular and simple installation, flexible overall mobility, and standardized, universal design.

Product Advantages:

Large feeding capacity and hopper volume

Fully vehicle-mounted belt conveyor, enabling shipment without disassembly

Advanced modular universal design with enhanced versatility

Convenient foundation installation, allowing quick entry into operational mode

Table of Specifications and Performance Parameters

Equipment Model	Feeding and screening equipment	Crushing equipment	Belt conveyor	Silo capacity	Maximum feed particle size	Transport dimensions
K Series	(/)	(/)	(/)	(m³)	(mm)	(mm)
K3T70-4	GF09363Y1548	PE500X750PYB900	B650×10.5m……	3	425	15150 × 2800 × 4500
K3T100-4	GF0936S5X1845-3	C6X80HST100	B800 × 10.5m	4	430	15500 × 2650 × 4000
K3T150-4	GF0936S5X1845-3	C6X80HST160	B800 × 10.5m	4	430	15500 × 2650 × 4000
K3E760-1	GF1245	PEW760	B1200 × 10m	6.5	630	12800 × 2800 × 4200
K3C100-1	GF1245	C6X100	B1200 × 10m	6.5	630	12800 × 2800 × 4100
K3C110-1	GF1245	C6X110	B1200 × 10m	6.5	720	12800 × 2800 × 4100
K3Cl1213-1C	GF1245	CI5X1213	B1200 × 10m	6.5	530	12800 × 2800 × 4100
K3F1315-1C	GF1245	CI5X1315	B1200 × 10m	6.5	600	12800 × 2800 × 4100
K3H300-1	--	HPT300	B1200×6.3m……	4.5	180	12650 × 2800 × 4000
K3C11213-1	--	CI5X1213	B1200×6.3m……	4.5	300	12650 × 2800 × 4000
K3C11315-1	--	CI5X1315	B1200 × 6.3m	4.5	300	12650 × 2800 × 4000
K3V9026-1	--	VSI6X9026	B1200 × 6.3m	4.5	35	12650 × 2800 × 4000
K3H300D-2	--	HPT300HPT300	B1200×6.3m……	4.5	180	14850 × 2800 × 4000
K3H300V-2	--	HPT300VSI6X1040	B1200 × 6.3m	4.5	180	14850 × 2800 × 4000
K3S1860-1	S5X1860-3	--	B1000 × 10m	--	200	15200 × 3000 × 4200
K3S2160-1	S5X2160-3	--	B1000 × 10m	--	200	15200 × 3000 × 4200
K3S2460-1	S5X2460-3	--	B1000 × 10m	--	200	15200 × 3000 × 4200
K3H300S-2	3Y2160	HPT300	B1000 × 8.5m	--	180	15500 × 2700 × 4480
K3T160S-2	3Y2160	HST160S	B1000 × 8.5m	--	250	15500 × 2700 × 4480
K3F1214S-2	3Y1860	PFW1214III	B1000 × 8.5m	--	250	15500 × 2700 × 4480
K3F1315S-2	3Y2160	PFW1315II	B1000 × 8.5m	--	300	15500 × 3000 × 4480
K3V8522S-2	3Y1860	VSI5X8522	B1000 × 8.5m	--	35	15500 × 2700 × 4480
K3V9532S-2	3Y2160	VSI5X9532	B1000 × 8.5m	--	40	15500 × 2700 × 4480
K3V1145S-2	3Y2460	VSI5X1145	B1000 × 8.5m	--	45	15500 × 2700 × 4480
