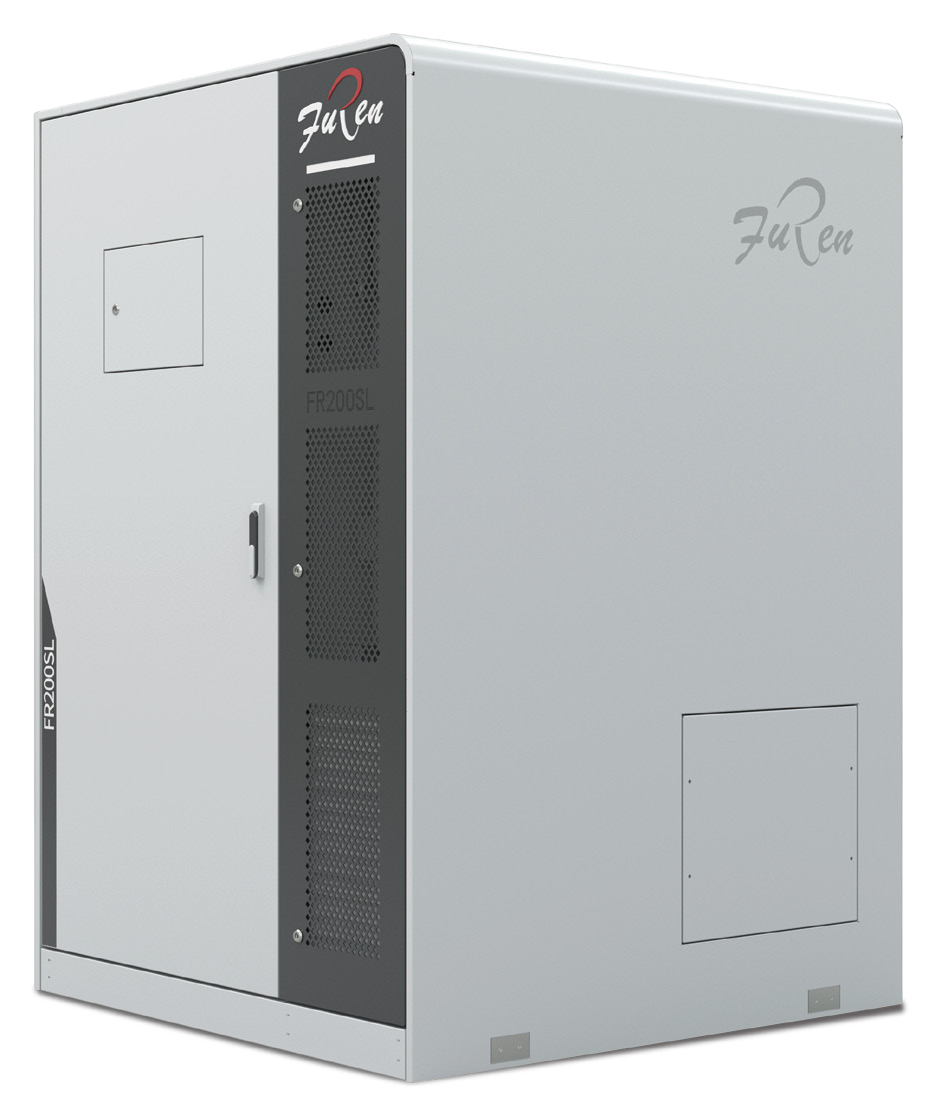

FR200SL 232kWh (Liquid-cooled) Commercial and Industrial Energy Storage System

Product Model

232kWh (liquid cooling) commercial and industrial all-in-one energy storage system

Battery Parameters

Cell Type

3.2V/280Ah(LFP)

Battery PACK Configuration

1P52S/46.592kWh

Battery System Configuration

1P260S

Nominal System Voltage (V)

832

Battery System Capacity (kWh)

232.96

Operating Voltage Range (V)

728-936

AC Parameters (Grid Connection)

Rated Power (kW)

100

Rated Grid Voltage (V)

400

Grid Voltage Range

-15% to 10%

AC Frequency (Hz)

50/60

Frequency Range (Hz)

± 5

Total Current Harmonic Distortion Rate THDi

≤ 3%

Grid-connected Power Factor

-1 (lead) ~ 1 (lag)

AC Standard

3P+N+PE

AC Parameter (Off-grid)

Rated Power (kW)

100

Rated Voltage (V)

400

AC Off-grid Frequency (Hz)

50/60

Off-grid Output THDu

≤ 2% linear

Overload Capacity

110%-10min,120%-1min

System Parameters

Box Size (W×D×H)

1480 × 1435 × 2080

Operating Temperature Range

-30~60 ℃(>45 ℃ derating)

Humidity Range

0 ~ 95% (no condensation)

Cooling Mode

Intelligent liquid cooling

Fire Protection System (Battery Container)

Perfluorohexanone

Highest Elevation

5000m(>3000m derating)

Display

Touch screen

Weight (T)

~ 3.2

Protection Level

IP54

Communication Mode

RS485/Ethernet/CAN

Monitoring System

Have
